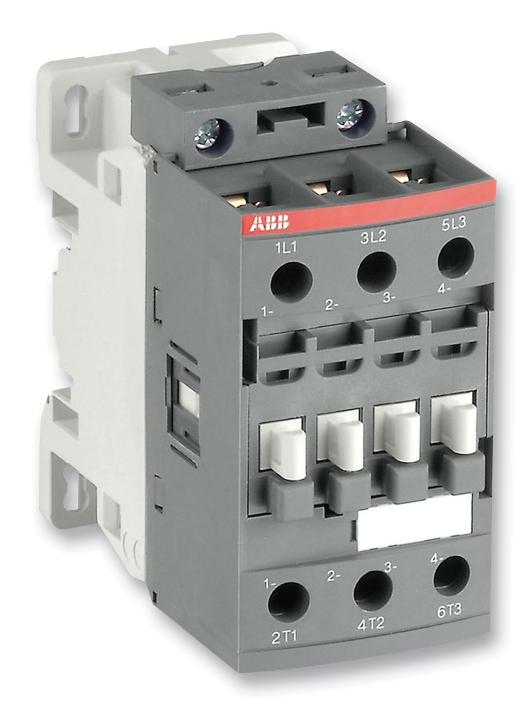

ABB AF09301013 Three-pole Switch Contact
ABB AF09-30-10-13 is a three-pole IEC-rated contactor designed for switching applications. It operates with a coil voltage of 100-250V AC or DC and is suitable for control of electrical loads up to 9 amperes.
ABB AF09301013 Three-pole Switch Contact Specifications:
- Main Terminals: Screw terminals with cable clamp
- Connecting Capacity (min. ... max.): Rigid solid 12.5... 10 mm², stranded 14... 6 mm², flexible with non-insulated ferrule 10.75... 6 mm²
- Auxiliary conductors: 18... 14 AWG
- Rated Insulation Voltage: 690 V AC/DC
- Rated Operational Voltage: 24-127 V, 50/60 Hz or 20-250 V DC
- Rated Operational Current le / AC-15: 6 A at 24 V, 14 A at 240 V, 12 A at 500 V
- Rated Power: 0.27 kW at 24 V DC, 0.31 kW at 250 V DC
- Number of Operating Cycles: 10 million
- Max. Switching Frequency: 1500 cycles/h
- Rated Short-time Withstand Current: 100 A
- Degree of Protection: IP20
- Tightening Torque: 11.2 Nm / 11 lb.in
Buy the ABB AF09-30-10-13 Reliable Magnetic Contactor for Industrial Applications
Order the ABB AF09-30-10-13 contactor online and ensure reliable control of electrical loads up to 9 amperes. Designed for switching 3-phase motors and loads up to 690 V AC/DC, it features a control voltage range of 100-250 V AC/DC, high durability with 10 million cycles, and IP20 protection. Ideal for industrial automation, this contactor offers quick installation with screw terminals, extensive switching capabilities, and robust construction to sustain demanding environments. Purchase now for dependable performance in your electrical systems.
Get ABB AF09-30-10-13 today—built for precision and long-lasting durability in switching applications.
Frequently Asked Questions
Where can I buy ABB AF09301013?
You can click on the BUY or RFQ button to purchase AF09301013 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part AF09301013?
You can download the AF09301013 datasheet or visit the ABB website for support.
Who is the manufacturer of AF09301013?
ABB
