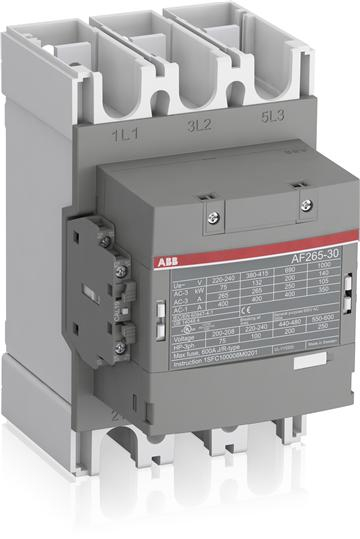

ABB AF265301113 Three-Pole Contactor
The AF265 contactor is an ABB IEC-rated three-pole device rated to handle up to 265 amps. It operates on a coil voltage range of 100 to 250 volts AC/DC, making it suitable for switching and control of three-phase motors and power circuits up to 1000 V AC. Features include built-in surge suppression, a block type design with 3 main poles, and compatibility with a wide range of control voltages from 24 to 500 V. Designed for reliable performance under varying voltage conditions, it offers efficient motor control with auxiliary contacts and accessories for versatile applications.
ABB AF265301113 Three-Pole Contactor Specifications:
- Rated operational current: 265 A
- Maximum switching voltage: 1000 V AC
- Coil voltage range: 100 to 250 V AC/DC
- Control voltage: Wide range of 24 to 500 V
- Number of poles: 3
- Built-in surge suppression
- Design: Block type with 3 main poles
- Power rating: Suitable for motors up to 300 hp at 480 V AC
- Auxiliary contacts: 1 N.O. + 1 N.C.
- Operating temperature: 40°C maximum
- Certifications: IEC-compliant, UL/CSA rated
- Dimensions: Main dimensions conform to IEC standards, specific dimensions based on model
- Mechanical endurance: High cycle life for durability
- Protection features: Short voltage dips handling, surge suppression
- Accessories: Add-on auxiliary contact blocks, side-mounted options
Buy the ABB Series AF Contactor: AF265301113
Purchase the ABB three-pole contactor AF265301113 online today and benefit from reliable motor switching and control for industrial applications. This six-amp device features a wide coil voltage range of 100 to 250 V AC/DC, built-in surge suppression, and auxiliary contacts for flexible control options. Its robust design ensures high durability, energy efficiency, and dependable operation in power circuits up to 1000 V AC. Perfect for controlling three-phase motors in manufacturing, HVAC, and automation systems, this contactor combines high performance with ease of installation.
Order your ABB Series AF265301113 contactor today and ensure reliable motor control with versatile electrical switching designed for demanding applications.
Frequently Asked Questions
Where can I buy ABB AF265301113?
You can click on the BUY or RFQ button to purchase AF265301113 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part AF265301113?
You can download the AF265301113 datasheet or visit the ABB website for support.
Who is the manufacturer of AF265301113?
ABB
