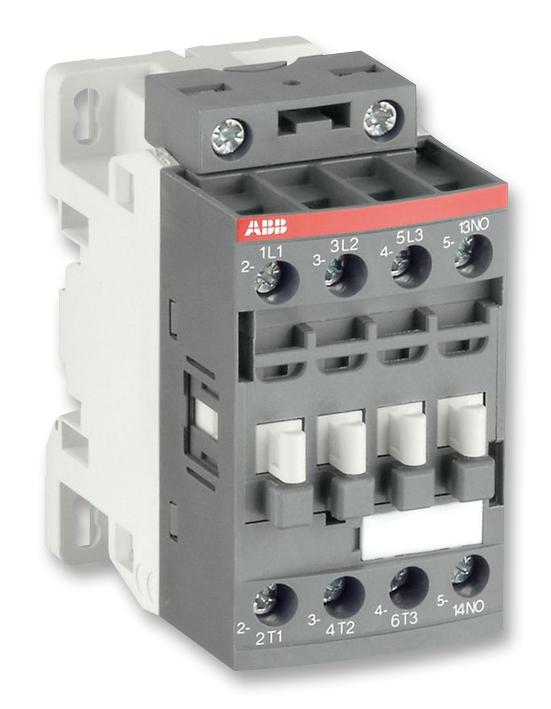

ABB AF38300013 Industrial Control Contactors
This is an ABB IEC-rated 3-pole contactor with a 38-ampere current rating and a coil voltage range of 100 to 250 volts AC/DC. Designed for controlling electric circuits, it provides reliable switching for industrial and commercial applications. The contactor features built-in surge protection, front and side-mounted auxiliary contacts, and complies with IEC 60947 standards. Suitable for controlling three-phase motors and various AC/DC loads, it offers robust performance, easy installation, and a wide range of accessories for flexible use in automation systems.
ABB AF38300013 Industrial Control Contactors Specifications:
- Number of Main Contacts NC: 0
- Number of Auxiliary Contacts NO: 0
- Rated Operational Voltage: 690 V AC, 220 V DC
- Rated Frequency: 50/60 Hz
- Rated Operational Current AC-1 (Ie): 50A (690 V), 40A (380-400 V), 38A (415-440 V), 33A (no voltage specified), 24A (690 V)
- Rated Operational Power AC-3: 18.5 kW (380-400 V), 22 kW (415-440 V), 22 kW (500 V), 22 kW (690 V)
- Maximum Breaking Capacity: 700A at 40°C, 10s, 350A at 30s, and other capacities depending on voltage and time
- Lifetime Cycles: 6000 cycles per hour (AC-1), 150 cycles per hour (AC2/AC), 1200 cycles per hour (AC-3)
- Control Circuit Voltage (Ud): 100-250V AC/DC
- Operate Time: 13-98 ms (coil de-energization to NC contact closing), 11-95 ms (coil de-energization to NO contact opening)
- Connections: Screw terminals, flexible and rigid ferule connections up to 10 mm²
- Environmental Resistance: Climatic withstand, vibration, and shock resistant per IEC standards
- Protection Rating: IP20
- Dimensions: Depth 86 mm, Height 86 mm, Width 45 mm
- Weight: 0.310 kg
- Standards: IEC 60947-1, IEC 60947-4-1, UL 508, CSA C22.2 No 14
Buy the ABB Series AF38 Contactors: AF38-30-00-13
Purchase the ABB AF38-30-00-13 contactor online today and enhance your automation system with a reliable, IEC-rated 3-pole device capable of controlling circuits up to 690 V AC and 220 V DC. Designed with built-in surge protection, versatile auxiliary contacts, and compliance with international standards, this contactor ensures optimal performance in industrial environments. Easy to install and maintain, it comes with a range of accessories, supporting seamless integration into your control systems for efficient operation and long-term durability.
Buy ABB AF38-30-00-13 contactor now and experience unmatched reliability and performance in industrial motor control applications.
Frequently Asked Questions
Where can I buy ABB AF38300013?
You can click on the BUY or RFQ button to purchase AF38300013 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part AF38300013?
You can download the AF38300013 datasheet or visit the ABB website for support.
Who is the manufacturer of AF38300013?
ABB
