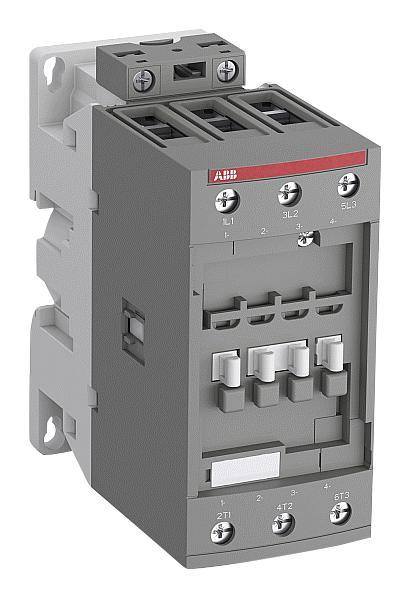

ABB AF52300011 Power Contactor
The AF&2-30-00-11 contactor is a robust, versatile power control device rated for up to 690 V AC and 220 V DC, designed for controlling three-phase motors and various loads. It features an electronic coil interface accepting control voltages between 24 V and 500 V, ensuring compatibility with global control systems. Built-in surge protection eliminates the need for additional suppressors. Its compact block design includes 3 main poles and add-on auxiliary contacts, with wide accessories available for customization. This high-current contactor is ideal for industrial automation and motor control applications, offering reliable performance under demanding conditions.
ABB AF52300011 Power Contactor Specifications:
- Rated Operational Voltage: Main Circuit 690 V
- Rated Control Circuit Voltage: 24...500 V AC/DC
- Number of Main Contacts NC: 0
- Number of Auxiliary Contacts NO: 0
- Rated Operational Current: 105 A at 690 V, 50/60Hz
- Maximum Breaking Capacity: 600 A at 440 V, cos phi=0.45
- Environmental Resistance: Climatic category B, max altitude 3000 m
- Dimensions: Depth 111 mm, Height 125.5 mm, Width 55 mm
- Weight: 0.97 kg
- Connections: Screw terminals, 1/2x 6-35 mm ferules, IP10 protection level
- Mechanical and electrical switching cycles: Up to 1200 cycles/hour, withstand voltage 6 kV
- Certificates: UL, CSA, CE, DNV, EAC, GL, LR, RINA, RMRS, RoHS compliant
Buy the ABB Series AF Contactor: AF52300011
Buy the ABB Series AF Contactor AF52300011 online today for reliable power control in industrial environments. Designed for controlling three-phase motors and inductive loads, this contactor features a wide control voltage range of 24 to 500 V AC/DC, built-in surge protection, and robust construction. Its compact block design ensures easy installation and maintenance, suitable for demanding applications up to 690 V AC and 220 V DC. Enhance your automation systems with this high-performance, UL-listed power contactor available for quick online purchase.
Order your ABB Series AF Contactor AF52300011 today and give your industrial automation projects the dependable power switching performance they require.
Frequently Asked Questions
Where can I buy ABB AF52300011?
You can click on the BUY or RFQ button to purchase AF52300011 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part AF52300011?
You can download the AF52300011 datasheet or visit the ABB website for support.
Who is the manufacturer of AF52300011?
ABB
