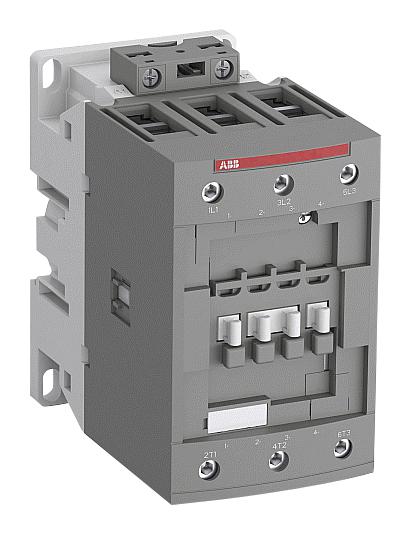

ABB AF80300013 Power Contactor
The AF80-30-00-13 contactor is a robust, high-performance device designed for controlling power circuits up to 690 V AC and 220 V DC. It features an electronic coil interface supporting a wide control voltage range, built-in surge protection, and a block type design with 3 main poles and optional auxiliary contacts. Ideal for motor control and industrial applications, it ensures reliable switching, high durability, and compatibility with various control voltages. The compact design and extensive accessory options make it suitable for demanding automation and power management tasks.
ABB AF80300013 Power Contactor Specifications:
- Rated Operational Voltage: Main Circuit 690 V
- Rated Frequency: 50 / 60 Hz
- Rated Operational Current AC-1: 130A at 40°C, 125A at 60°C, 100A at 70°C, 80A at 60°C (230/240V, 380/400V, 415V, 440V), 65A at 600V, 49A at 690V, 25A at 1000V
- Rated Short-time Withstand Current: 780 A for 10s
- Maximum Breaking Capacity: 1200 A at 40°C
- Electrical Switching Frequency: 600 cycles/hour (AC-1), 150 cycles/hour (AC2/AC), 1200 cycles/hour (AC)
- Rated Insulation Voltage: 1000 V
- Rated Impulse Withstand Voltage: 8 kV
- Terminal Type: Screw terminals with 17 mm connection capacity
- Dimensions: Depth 116 mm, Height 125.5 mm, Width 70 mm
- Weight: 1.170 kg
- Environmental: Operating altitude up to 3000m, temperature range -40°C to +70°C depending on configuration
- Protection Degree: IP10
- Climatic Resistance: conforming to IEC 60068-2-6, IEC 60068-2-27
- Certification: CE, UL, CSA, CCC, DNV, RINA, RMRS, EAC
- Control Circuit Voltage: 50-250 V AC/DC, 20-500 V DC
- Operate Time: 17-42 ms depending on control voltage and type
Buy the ABB AF80-30-00-13 – Reliable Power Contactor for Industrial Applications
Purchase the ABB AF80-30-00-13 power contactor online today for reliable performance in controlling high-voltage power circuits up to 690 V AC and 220 V DC. Designed with advanced electronic coil interface supporting a wide control voltage range, this contactor includes built-in surge protection and a robust block type design with three main poles. Its compact size, extensive accessory compatibility, and high durability make it ideal for motor control, automation systems, and industrial power management. Secure your equipment's power switching needs with this high-quality contactor today.
Get ABB AF80-30-00-13 contactor today—built for precision, high durability, and versatile motor control in industrial environments.
Frequently Asked Questions
Where can I buy ABB AF80300013?
You can click on the BUY or RFQ button to purchase AF80300013 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part AF80300013?
You can download the AF80300013 datasheet or visit the ABB website for support.
Who is the manufacturer of AF80300013?
ABB
