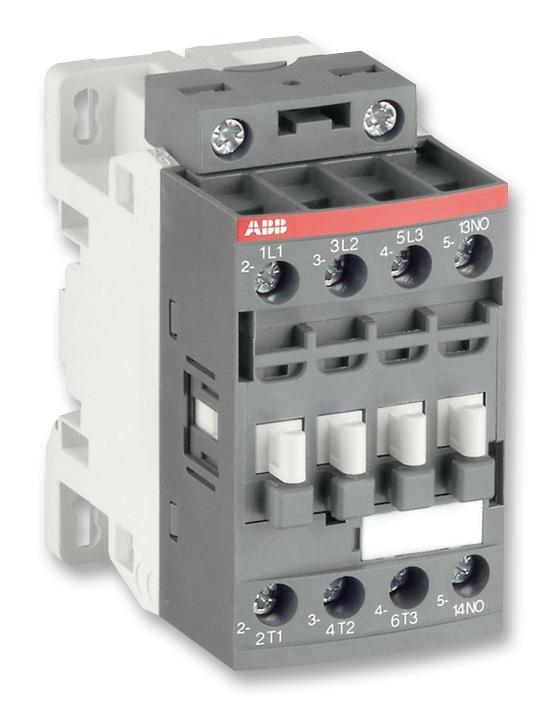

ABB AF09400013 power contactor
The product is a 4-pole contactor designed for controlling power circuits up to 690 V AC and 440 V DC, suitable for non-inductive or lightly inductive loads such as resistance furnaces. It features an electronic coil interface accepting a wide range of control voltages from 24 V up to 500 V AC or DC, ensuring versatility across global electrical systems. Equipped with built-in surge protection, it does not require external suppressors. The contactor supports high switching frequency, has robust mechanical durability rated for 10 million cycles, and complies with IEC 60947-4-1 standards, making it ideal for industrial automation and power management tasks.
ABB AF09400013 power contactor Specifications:
- Rated operational voltage: up to 690 V AC, 440 V DC
- Rated control voltage: 24-500 V AC/DC
- Number of poles: 4
- Mechanical durability: 10 million cycles
- Switching frequency: up to 3600 cycles/h
- Built-in surge protection, no external needed
- Compliance: IEC 60947-4-1, UL 608, CSA C22.2 N°14
- Contact load capacity: 125 A AC-1, 600 V max
- Insulation voltage U: 690 V, impulse voltage Uimp: 8 kV
- Dimensions: Refer to specific model codes (approximate size is 48.177 mm width)
- Mounting: Side by side, rail or screw fixing
- Temperature operation: -40°C to +70°C
- Enclosure protection: IP20
Buy the Buy ABB Power Contactors Part Number AF09400013 Online
Purchase the ABB power contactor AF09400013 online today for reliable circuit control up to 690 V AC and 440 V DC. Featuring wide control voltage acceptance, surge protection, high switching capacity, and durability rated for 10 million cycles, this contactor is ideal for demanding industrial automation. Easy to install side-by-side, it ensures safe, efficient power management with compliance to IEC 60947 standards. Simplify your power control systems by ordering online and experience the trusted quality of ABB's automation solutions.
Get ABB power contactors, model AF09400013, today—engineered for high performance and long-lasting durability in industrial applications.
Frequently Asked Questions
Where can I buy ABB AF09400013?
You can click on the BUY or RFQ button to purchase AF09400013 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part AF09400013?
You can download the AF09400013 datasheet or visit the ABB website for support.
Who is the manufacturer of AF09400013?
ABB
