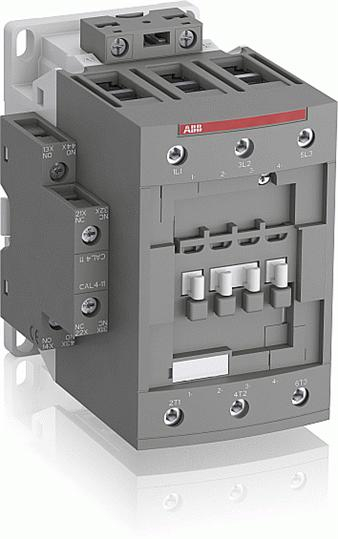

ABB AF80301113 Industrial Contactors
ABB IEC-rated contactor with three poles, rated for 80 amps, suitable for controlling power circuits up to 690 V AC and 220 V DC. Designed for industrial applications, it manages large control voltage variations with built-in surge protection, eliminating the need for additional suppressors. This block type 3-pole contactor features auxiliary and main contacts, is AC/DC operable, and includes accessories for versatile installation. Ideal for motor control and switching of non-inductive or slightly inductive loads, ensuring reliable and safe operation.
ABB AF80301113 Industrial Contactors Specifications:
- Number of Main Contacts: 0 NC
- Rated Operational Voltage: 690 V AC, 220 V DC
- Rated Frequency: 50/60 Hz
- Rated Operational Current AC-1: 130A at 40°C
- Rated Operational Current AC-3: 125A at 690 V
- Rated Operational Power AC-3: 45 kW at 690 V
- Rated Operational Current DC-13: 25A at 600 V
- Rated Insulation Voltage: 690 V
- Rated Impulse Withstand Voltage: 8 kV
- Maximum Breaking Capacity: 1200 A at 690 V
- Operate Time: 42-100 ms
- Dimensions (HxWxD): 125.5 mm x 82 mm x 116 mm
- Net Weight: 1.210 kg
- Environmental Rating: IP20
- Maximum Operating Altitude: 3000 m
- Resistance to Vibrations: 3 g
- Resistance to Shock: 25 g
- Ambient Temperature Range: -25°C to +60°C
- Control Circuit Voltage: 100-250 V AC/DC
- Connection Capacity Main Circuit: 6 mm²
- Connection Capacity Control Circuit: 0.75-2.5 mm²
- Certification: UL, CSA, IEC 60947-4-1, IEC 60947-5-1
- Standards Compliance: EN 60947-4-1, EN 60947-5-1
Buy the ABB Series AF80 80A Contactor: AF80301113
Purchase the ABB Series AF80 80A Contactor online today for reliable power switching in industrial applications. Designed for controlling motor loads up to 690 V AC/DC, it includes built-in surge protection and versatile accessories, ensuring safety and durability. Perfect for controlling non-inductive and slightly inductive loads, its high current capacity and fast operation time make it ideal for demanding environments. Buy now to enhance your automation system with a trusted and efficient contactor that guarantees high performance and long service life.
Order your ABB Series AF80 80A Contactor today and give your industrial control systems the dependable switching performance they require.
Frequently Asked Questions
Where can I buy ABB AF80301113?
You can click on the BUY or RFQ button to purchase AF80301113 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part AF80301113?
You can download the AF80301113 datasheet or visit the ABB website for support.
Who is the manufacturer of AF80301113?
ABB
