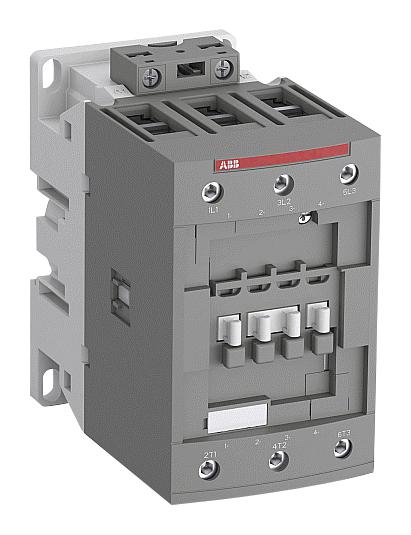

ABB AF96300013 Industrial Contactors
The AF96-30-00-13 is a 3-pole block contactor designed for controlling power circuits up to 690 V AC and 220 V DC. It features a robust electronic coil interface supporting control voltages between 24 and 500 V, both AC and DC. This contactor operates efficiently with built-in surge protection, eliminating the need for external suppressors. It includes front and side-mounted auxiliary contact blocks, is rated for high operational currents up to 130A at 690 V, and is suitable for controlling motors and inductive loads in various industrial applications. Its compact design ensures ease of installation and reliable performance under demanding conditions.
ABB AF96300013 Industrial Contactors Specifications:
- Rated Operational Voltage: Main Circuit 690 V
- Rated Control Circuit Voltage: 100-250V AC / DC 20-500V
- Number of Main Contacts: 3
- Auxiliary Contacts: Mechanical link, optional
- Rated Operational Current: up to 130A at 690 V AC
- Frequency: 50/60 Hz
- Dimensions: Depth 116mm, Height 125.5mm, Width 70mm
- Weight: 1.170 kg
- Degree of Protection: IP10
- Terminal Type: Screw terminals
- Climatic Resistance: Category B, operates up to 3000m altitude
- Environmental Resistance: Shock and vibration resistant per IEC standards
- Operating Temperature: -40°C to +70°C depending on configuration
- Certifications: UL, CSA, CE, DNV, EAC, RINA, RMRS
Buy the Buy ABB AF96-30-00-13 Part Number AF96-30-00-13 Online
Discover the ABB AF96-30-00-13 contactor available online, perfect for controlling power circuits up to 690 V AC and 220 V DC. This 3-pole block contactor features robust construction, built-in surge protection, and high operational current capacity up to 130A, making it ideal for motor control and inductive loads in demanding industrial settings. Its compact design allows easy installation, while its certifications ensure compliance with global safety standards. Purchase this reliable control component online today for seamless integration into your automation system.
Get ABB AF96-30-00-13 today—built for high current control and reliable operation in industrial environments.
Frequently Asked Questions
Where can I buy ABB AF96300013?
You can click on the BUY or RFQ button to purchase AF96300013 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part AF96300013?
You can download the AF96300013 datasheet or visit the ABB website for support.
Who is the manufacturer of AF96300013?
ABB
