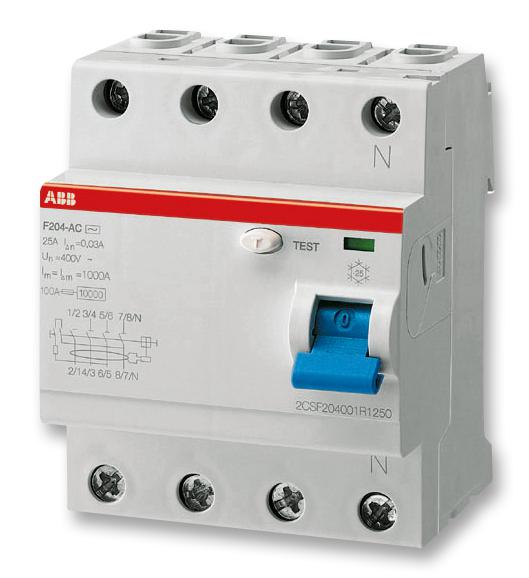

ABB F204AC63003 Residual Current Device
The F204 AC-63/0,03-L residual current device (RCCB) offers reliable protection against earth fault currents, ensuring safety for residential and industrial electrical systems. It features a rated residual current of 30 mA, rated current of 63A, and four poles with neutral terminals on the left side. Compliant with EN 61008 and UL 1053 standards, it operates efficiently at typical voltages of 230/400 V. Designed for DIN rail mounting, this compact device weighs 0.36 kg and measures 0.085 m in height, 0.069 m in depth, and 0.070 m in width, making it suitable for various electrical installations requiring fault current protection.
ABB F204AC63003 Residual Current Device Specifications:
- Rated Residual Current: 30 mA
- Rated Current (I,): 63A
- Number of Poles: 4
- Type of Residual Current: AC
- Operating Voltage: 230/400 V
- Standards: EN 61008, UL 1053
- Power Loss at Rated Conditions per Pole: 4.4 W
- Dimensions: Height 0.085 m, Depth 0.069 m, Width 0.070 m
- Net Weight: 0.360 kg
- Package Dimensions: Width 0.082 m, Height 0.078 m, Length 0.096 m
- Certificate Standards: CE, RoHS-compliant
- Installation: Modular DIN Rail
- Environmental: RoHS compliant
Buy the Schneider Series RCCB: Residual Current Device 30mA 63A AC: F204AC63003
Enhance your electrical safety with this high-quality residual current device designed for reliable earth fault detection. This compact, DIN rail-mountable RCCB features a rated residual current of 30mA and a rated current of 63A, suitable for protecting both residential and industrial systems. Built to standards EN 61008 and UL 1053, it offers optimal performance with minimal power loss of 4.4 W per pole. Easy to install, lightweight, and RoHS compliant, ensuring safe and eco-friendly operation at 230/400V.
Buy Schneider Residual Current Device 30mA 63A AC now and experience unmatched reliability and performance for safe electrical installations.
Frequently Asked Questions
Where can I buy ABB F204AC63003?
You can click on the BUY or RFQ button to purchase F204AC63003 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part F204AC63003?
You can download the F204AC63003 datasheet or visit the ABB website for support.
Who is the manufacturer of F204AC63003?
ABB
