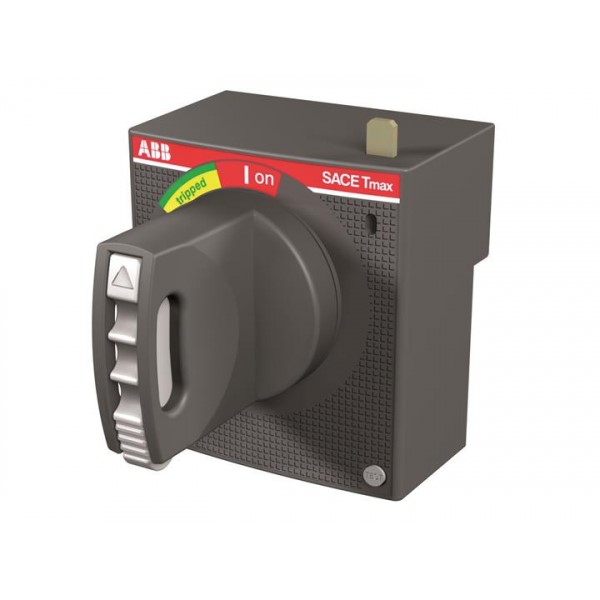

ABB KXTCRHDSTFP Molded Case Circuit Breaker
The ABB Tmax XT series circuit breakers, including the KXTCRHDSTFP, are designed to provide robust and reliable overcurrent protection for a wide range of industrial applications. These breakers feature a modular design, allowing for flexibility in system configuration and easy maintenance. They are available with various trip units, including thermal-magnetic and electronic options, to meet specific protection requirements. The Tmax XT breakers are suitable for motor protection, feeder protection, and other critical applications where dependable performance is essential. They are known for their high interrupting capacity and long mechanical life, ensuring years of reliable service.
ABB KXTCRHDSTFP Molded Case Circuit Breaker Specifications:
- Frame size: XT1, XT2, XT3, XT4
- Up to: Up to 100A, 125A, 225A, 250A
- Poles: 3, 4
- Rated service voltage (AC): 480V (600Y), 600V
- Rated service voltage (DC): 500V
- Interrupting ratings N S H: 50, 65, 100, 65, 100, 150, 200, 200, 200, 50, 65, 65, 100, 150, 200
- Icu at 240 V (AC) [kA]: 50, 65, 100
- Icu at 480 V (AC) [kA]: 25, 35, 65
- Icu at 600Y/347 V (AC) [kA]: 18, 22, 25
- Icu at 600 V (AC) [kA]: 18, 22, 25
- Mechanical life [No. operations]: 25000
- Dimensions (Width/Depth/Height): 3 x 2.75 x 5.12, 3.54 x 3.25 x 5.12, 4.13 x 2.75 x 5.90, 4.13 x 3.25 x 6.3
- Weight: 2.43 / 3.07, 2.65 / 3.53, 3.75 / 4.63, 5.51 / 7.72
- Trip units: TMF, TMA, Ekip I, Ekip LS/I, Ekip LSI, Ekip LSIG
- Motor protection: H, S
- Magnetic override: 1250, 2250, 2500
