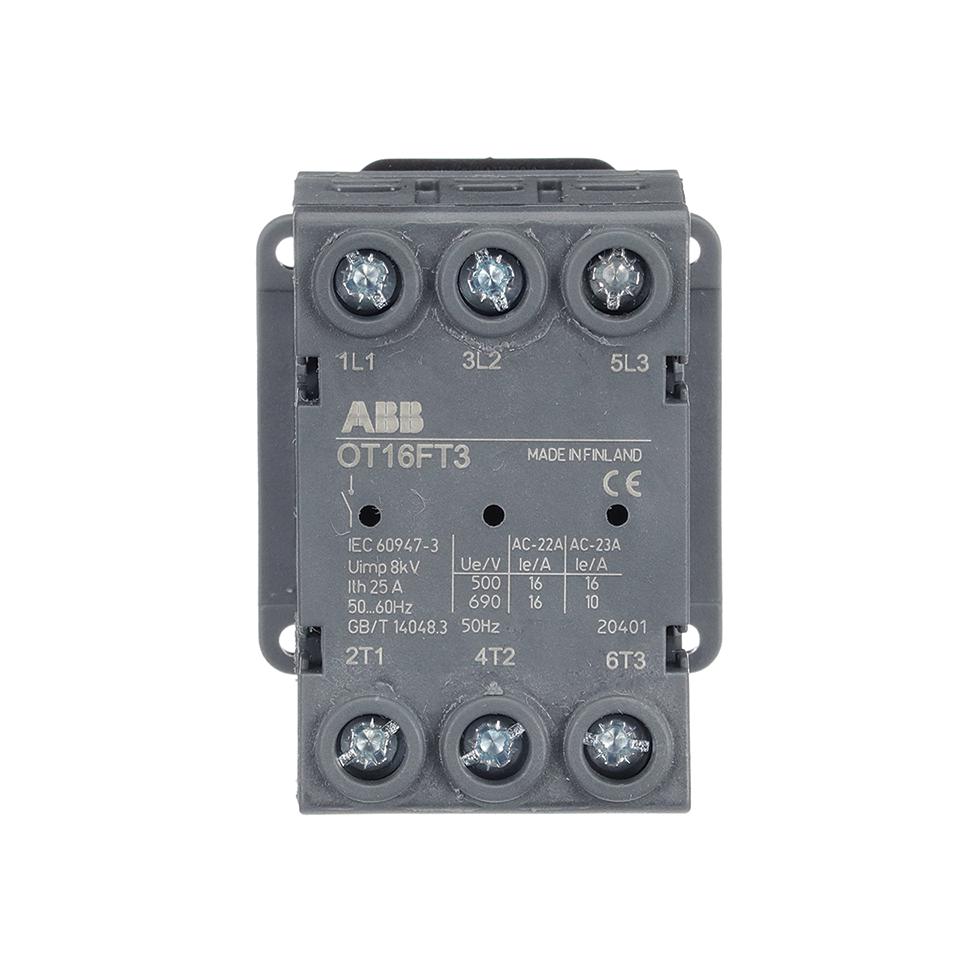

ABB OT16FT3 Switch-disconnector
The OT16FT3 is a 3-pole, front-operated switch-disconnector used for isolating electrical circuits in low-voltage systems. It features protected clamp terminals, a sturdy door-mounted design, and is suitable for a maximum voltage of 600 V. This non-fusible disconnect switch complies with IEC 60947-3 and UL 508 standards, rated at 20A, with a rated operational power of up to 7.5kW at 690 V. Its compact dimensions (43mm width, 54mm height, 52mm depth) and robust construction make it ideal for industrial applications requiring reliable circuit disconnection and high safety standards. Handle and shaft are not included.
ABB OT16FT3 Switch-disconnector Specifications:
- Number of Poles: 3
- Maximum Operating Voltage: 600 V
- Rated Operational Current: 20A
- Rated Power at 690 V: 7.5kW
- Rated Impulse Withstand Voltage: 8 kV
- Rated Insulation Voltage: 750 V
- Dimensions: Width 43mm, Height 54mm, Depth 52mm
- Weight: 0.13 kg
- Tightening Torque: 0.8Nm
- Standards: IEC 60947-3, UL 508 / CSA C22.2 NO.14
- Mounting: Door mounted
- Operating Mode: Front operated
- Dielectric Test Voltage: 6000 V
- Conventional Thermal Current: 25A
- Rated Short-time Withstand Current: 0.5 kA for 1 sec
- Certificates: CE, UL, CSA
Buy the Buy Schneider Electric OT16FT3 Part Number OT16FT3 Online
Purchase the Schneider Electric OT16FT3 switch-disconnector online for superior circuit isolation in industrial applications. This 3-pole, door-mounted switch features protected clamp terminals, compact dimensions, and is rated at 20A and 600V. It complies with IEC and UL standards, offering up to 7.5kW power capacity at 690 V, ensuring safe and reliable operation. Ideal for electrical distribution and safety enclosures, the OT16FT3 provides robust performance, easy installation, and high durability, making it the perfect choice for professionals seeking quality and compliance.
Order your Schneider Electric OT16FT3 switch-disconnector today and ensure reliable circuit control with high safety and easy installation features.
Frequently Asked Questions
Where can I buy ABB OT16FT3?
You can click on the BUY or RFQ button to purchase OT16FT3 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part OT16FT3?
You can download the OT16FT3 datasheet or visit the ABB website for support.
Who is the manufacturer of OT16FT3?
ABB
