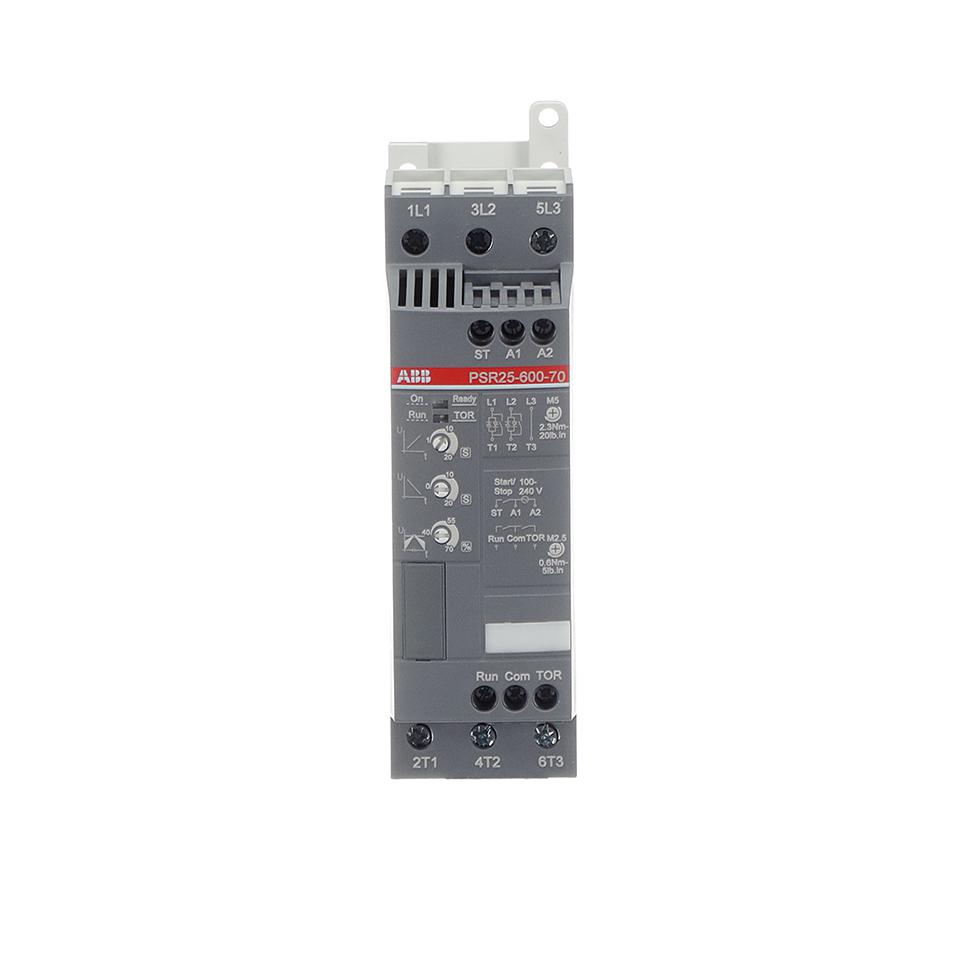

ABB PSR256007025A Softstarter
The PSR softstarter range is extremely compact, designed for easy installation and energy-efficient operation. Suitable for motor currents from 3 to 105 A, it can be DIN-rail or screw mounted. It features reduced heat generation, quick setup via potentiometers, and built-in bypass to minimize energy losses and installation time. Includes optional fieldbus communication and relays for fault and run signals, making it ideal for controlling pumps, fans, and compressors with minimal mechanical stress during startup and stop processes.
ABB PSR256007025A Softstarter Specifications:
- Rated insulation voltage U, 600 V
- Rated operational voltage U, 208-600 V AC
- Rated control supply voltage U, 100-240 V AC or 24 V AC/DC
- Rated control circuit voltage U, Internal or external 24 V DC
- Rated operational current, 3-105 A
- Ambient temperature during operation, -25°C to +60°C
- Maximum altitude, 4000 m
- Degree of protection, IP20 IP10 depending on size
- Power consumption at rated current varies by model, up to 25 W
- Built-in bypass, energy-saving, and energy dissipation reduction
- Connection type, DIN-rail or screw mounting
- Optional communication interfaces: Profibus, DeviceNet, CANopen
- Signal relays for fault and run signals, rated 250 V AC/24 V DC, 5 A
- Adjustable ramp times: start 1-20 sec, stop 0-20 sec
- Voltage and current tolerances: ±10-15%, derating above 40°C
Buy the Buy ABB Softstarter Part Number PSR256007025A Online
Enhance your motor control system with the ABB softstarter PSR256007025A. Compact and energy-efficient, it offers easy setup, built-in bypass, and optional fieldbus communication. Designed for motors up to 105A, it ensures smooth start and stop processes, reducing mechanical stress and energy loss. Suitable for various applications like pumps, fans, and compressors in harsh environments. With robust protection features, fault signaling relays, and flexible installation options, this softstarter simplifies system design and boosts operational reliability.
Buy ABB PSR256007025A softstarter now and experience reliable, energy-efficient motor control for pumps, fans, and compressors with minimal mechanical stress.
Frequently Asked Questions
Where can I buy ABB PSR256007025A?
You can click on the BUY or RFQ button to purchase PSR256007025A from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part PSR256007025A?
You can download the PSR256007025A datasheet or visit the ABB website for support.
Who is the manufacturer of PSR256007025A?
ABB
