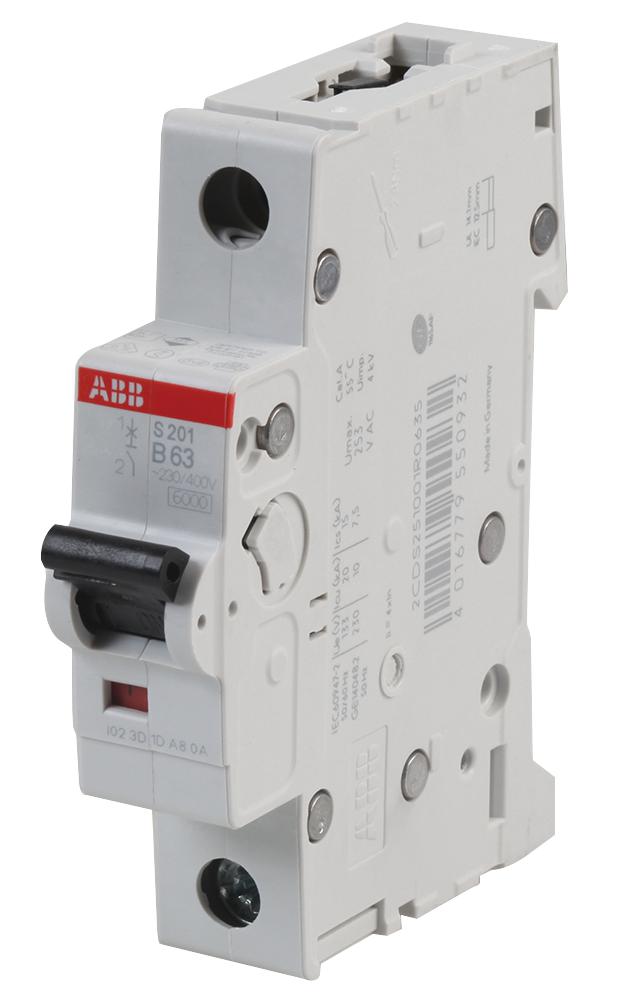

ABB S201B63 Circuit Breaker
The miniature circuit breaker S200-1P-63A provides reliable overcurrent protection for residential, commercial, and industrial applications. It features thermal delayed tripping for overload and electromechanical short-circuit protection, complying with IEC/EN 60898-1, IEC/EN 60947-2 standards. With a rated current of 63A and a breaking capacity of 6kA, it is designed for easy mounting on DIN rails, offering durability with screw terminals. Its compact size and protection ratings make it suitable for various electrical systems, ensuring safety and performance.
ABB S201B63 Circuit Breaker Specifications:
- Number of Poles: 1
- Tripping Characteristic: B
- Rated Current: 63A
- Rated Operational Voltage: 230/400 V AC
- Maximum Voltage: 253 V AC
- Rated Short-Circuit Capacity: 6kA (230/400 V AC)
- Rated Ultimate Short-Circuit Breaking Capacity: 20kA
- Rated Service Short-Circuit Breaking Capacity: 15kA
- Energy Limiting Class: Not specified
- Overvoltage Category: III
- Pollution Degree: 3
- Rated Impulse Withstand Voltage: 4kV
- Dielectric Test Voltage: 2kV for 1 min
- Housing Material: RAL 7035, Insulation group II
- Degree of Protection: IP40 with cover
- Electrical Endurance: 10,000 cycles
- Mechanical Endurance: 20,000 cycles
- Terminal Type: Screw terminals
- Connecting Capacity: 0.75 – 35 mm²
- Tightening Torque: 2.8 Nm
- Mounting: DIN rail TH35-15 or TH35-7.5
- Standards: IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
- Certification: UL, CSA
- Dimensions: Depth 69mm, Height 88mm, Width 17.5mm
- Weight: 0.125 kg
Buy the Generic 201-B63 – Reliable Circuit Breaker for Industrial Applications
Purchase the reliable circuit breaker online today and ensure your electrical system's safety with this 63A, single-pole miniature circuit breaker. Designed for industrial and residential use, it offers thermal overload and short-circuit protection, complying with international standards. Its DIN rail mounting allows easy installation in various electrical panels. With a breaking capacity of 6kA, it provides maximum safety against electrical faults. Order now to benefit from quick shipping and dedicated customer support for your electrical safety needs.
Get General Electric 201-B63 today—built for precision and long-lasting durability in electrical protection systems.
