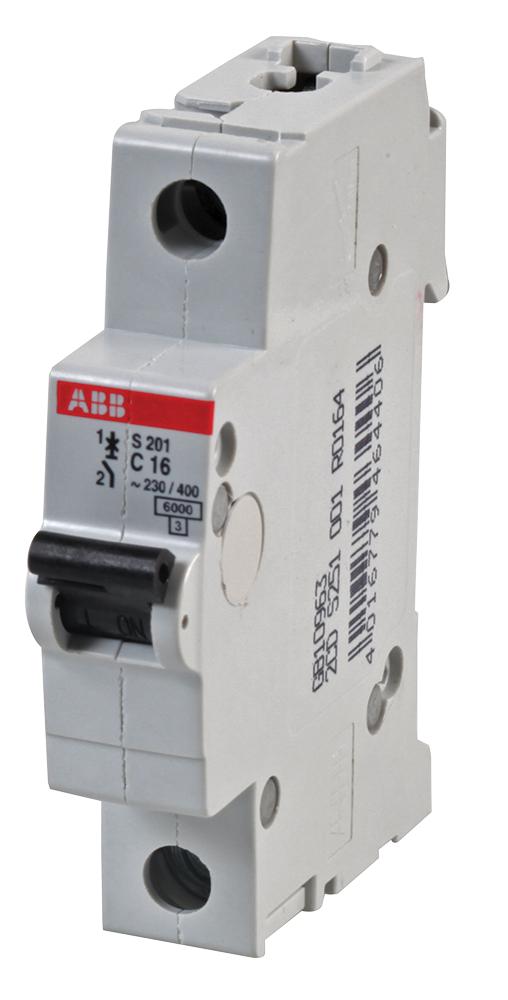

ABB S201C16 Miniature Circuit Breaker
The miniature circuit breaker is a 1-pole C-curve device rated at 16A, designed for residential and industrial applications. It provides reliable overload and short-circuit protection with a breaking capacity up to 6 kA at 230/400 V AC. Constructed from durable materials with IP40 protection, it features screw terminals, fail-safe bi-directional cylinder-lift terminals, and a sleek RAL 7035 black housing. Suitable for mounting on standard DIN rails, this MCB ensures high electrical endurance with up to 20,000 cycles, complying with IEC/EN standards for safety and performance.
ABB S201C16 Miniature Circuit Breaker Specifications:
- Number of Poles: 1
- Tripping Characteristic: Cc
- Rated Current: 16A
- Rated Voltage: 230/400 V AC
- Rated Short-Circuit Capacity: 6 kA at 230/400 V AC
- Rated Operational Voltage: 253 V AC maximum
- Rated Insulation Voltage: 440 V
- Rated Frequency: 50/60Hz
- Rated Impulse Withstand Voltage: 6.2 kV at sea level
- Housing Material: RAL 7035 black, IP40
- Degree of Protection: IP40
- Terminal Type: Screw Terminals
- Connecting Capacity: 18-4 AWG conductors, busbar 10/10 mm
- Tightening Torque: 2.8 Nm
- Mounting: Any position on TH35-15 or TH35-7.5 DIN rail
- Electrical Endurance: 20,000 cycles
- Mechanical Endurance: 20,000 cycles
- Standards: IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
Buy the Buy General Electric Miniature Circuit Breaker Part Number S201C16 Online
Secure your electrical systems today by purchasing the General Electric Miniature Circuit Breaker S201C16 online. This 1-pole, 16A device offers superior overload and short-circuit protection, ensuring safety and reliability for residential, commercial, and industrial applications. Designed with a robust black IP40 housing and screw terminals, it fits easily on standard DIN rails and endures up to 20,000 electrical cycles. Trust this high-performance breaker to deliver consistent and safe circuit management. Buy now for quick, secure online procurement.
Buy General Electric S201C16 now and experience unmatched reliability and performance in circuit protection with durable construction and high capacity.
Frequently Asked Questions
Where can I buy ABB S201C16?
You can click on the BUY or RFQ button to purchase S201C16 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part S201C16?
You can download the S201C16 datasheet or visit the ABB website for support.
Who is the manufacturer of S201C16?
ABB
