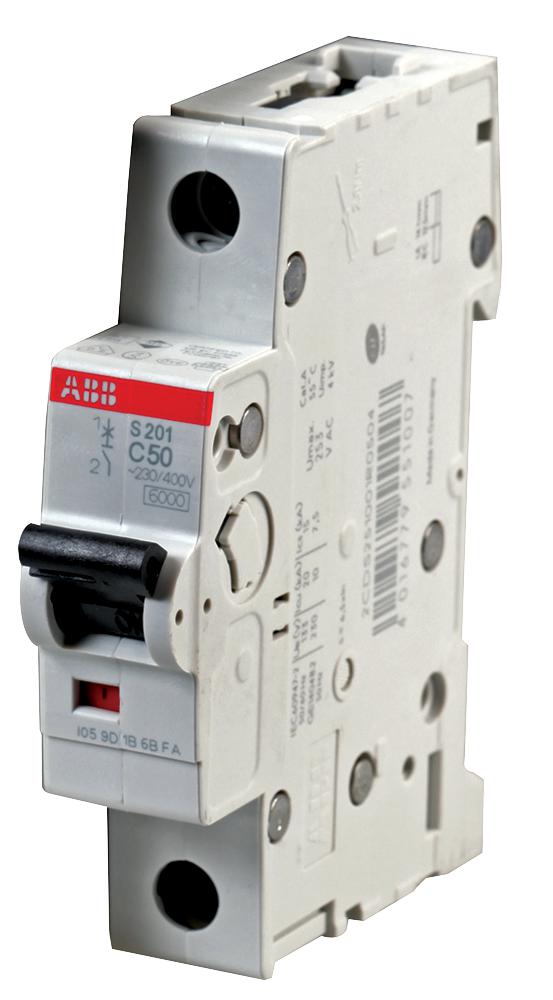

ABB S201C50 miniature circuit breaker
The system pro M compact S200 miniature circuit breaker is designed for residential, commercial, and industrial use. It features current limiting technology with delayed thermal and electromechanical short circuit tripping mechanisms. Rated at 50A with a trip characteristic of Cc, it complies with IEC/EN and UL standards, offering high breaking capacity up to 6 kA at 230/400 V AC. Compact with 1 pole and an IP40 degree of protection, it’s suitable for DIN rail mounting, providing reliable overload and short circuit protection for diverse electrical systems.
ABB S201C50 miniature circuit breaker Specifications:
- Number of Poles: 1
- Tripping Characteristic: Cc
- Rated Current (In): 50A
- Rated Operational Voltage: 230/400 V AC
- Rated Insulation Voltage (Uj): 440 V
- Rated Frequency (f): 50/60Hz
- Rated Short-Circuit Capacity (Icn): 6kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu): 20kA
- Rated Service Short-Circuit Breaking Capacity (Ics): 15kA
- Energy Limiting Class: 3
- Overvoltage Category: III
- Pollution Degree: 3
- Rated Impulse Withstand Voltage: 6kV
- Dielectric Test Voltage: 2kV for 1 min
- Housing Material: RAL 7035, Insulation Group II
- Contact Position Indication: Red ON / Green OFF
- Degree of Protection: IP40 in enclosure with cover
- Electrical Endurance: 10,000 AC cycles
- Mechanical Endurance: 20,000 cycles
- Terminal Type: Screw terminal
- Connecting Capacity: Conductor 18-4 AWG, busbar 10 x 10 mm
- Tightening Torque: 2.8 Nm
- Mounting on DIN Rail: TH35-15 / TH35-7.5 IEC 60715
- Standards: IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
Buy the Buy General Electric Miniature Circuit Breaker Part Number S201C50 Online
Order the General Electric S201C50 miniature circuit breaker online today for dependable overload and short circuit protection. Designed for residential, commercial, and industrial systems, this high-capacity breaker offers quick installation, complies with international standards, and ensures electrical safety with a compact, DIN rail mountable design. Perfect for controlling and protecting electrical circuits effectively in a versatile range of applications. Purchase now for professional-grade performance and peace of mind in your electrical setup.
Get General Electric S201C50 today—built for reliable overload and short circuit protection with compact DIN rail mounting design.
Frequently Asked Questions
Where can I buy ABB S201C50?
You can click on the BUY or RFQ button to purchase S201C50 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part S201C50?
You can download the S201C50 datasheet or visit the ABB website for support.
Who is the manufacturer of S201C50?
ABB
