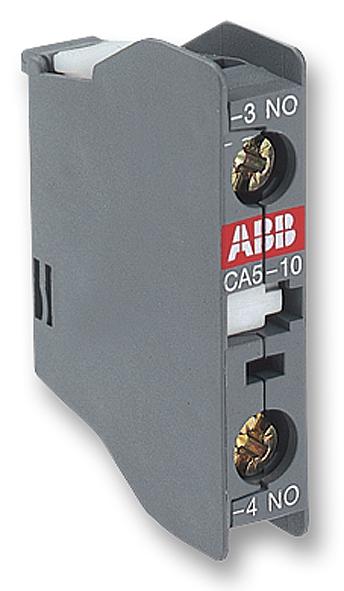

ABB 1SBN010010R1010 Auxiliary Contact Block
The ABB CA5-10 Auxiliary Contact Block is a crucial accessory for block contactors, enhancing their functionality and versatility. Designed for use in a wide range of industrial applications, this contact block provides reliable auxiliary contact capabilities. It features a rated breaking capacity of 10 x Ie AC-15, ensuring consistent performance under various electrical loads. The block is mounted on the front face of the contactor and is compatible with A 9...A 75 series contactors. Its robust design and adherence to industry standards like IEC 60947-5-1 make it a dependable choice for automation and control systems.
ABB 1SBN010010R1010 Auxiliary Contact Block Specifications:
- Extended Product Type: CA5-10
- Product ID: 1SBN010010R1010
- ABB Type Designation: CA 5-10
- EAN: 3471522121004
- Catalog Description: CA5-10 Auxiliary Contact Block
- Long Description: CA5-10 AuxiliaryContact Block
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 0.143 kg
- Package Level 1 Units: 10 piece
- Package Level 1 Gross Weight: 1.43 kg
- Package Level 1 EAN: 3471522121004
- RoHS Status: FollowingEU Directive 2002/95/EC August 18,2005 and amendment
- Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
- Maximum Electrical Switching: 1200 cycles per hour
- Maximum Mechanical Switching: 3600 cycles per hour
- Mechanical Durability: A9 ... A75 10 million, A95 ... A110 3 million
- Minimum Switching Capacity: A9 ... A75 17 / 5 volt per milliamp, A95 ... A110 24 / 50 volt per milliamp
- Mounting on Contactors: A 9...A 75
- Mounting Position: Front face
- Number of Auxiliary Contacts NO: 1
- Power Loss: at Rated Operating Conditions per Pole 0.1 W
- Product Main Type: Accessories for Block Contactors
- Rated Breaking Capacity acc. to IEC 60947-5-1: 10 x Ie AC-15
- Rated Frequency (f) Supply Circuit: 50 Hz, 60 Hz
- Rated Insulation Voltage (Ui) acc. to IEC 60947-5-1: 690 V
- Rated Insulation Voltage (Ui) acc. to UL/CSA: 600 V
- Rated Making Capacity acc. to IEC 60947-5-1: 10 x Ie AC-15
- Rated Operational Current AC-15 (220 / 240 V): 4 A
- Rated Operational Current AC-15 (24 / 127 V): 6 A
- Rated Operational Current AC-15 (380 / 440 V): 3 A
- Rated Operational Current AC-15 (500 V): 2 A
- Rated Operational Current AC-15 (690 V): 2 A
- Rated Operational Current DC-13 (125 V): 0.55 / 69 A
- Rated Operational Current DC-13 (24 V): 6 / 144 A
- Rated Operational Current DC-13 (250 V): 0.3 / 75 A
- Rated Operational Current DC-13 (48 V): 2.8 / 134 A
- Rated Operational Current DC-13 (72 V): 1 / 72 A
- Rated Operational Voltage Auxiliary Circuit: 690 V
- Rated Operational Voltage Main Circuit: 24 V
- Rated Short-time Withstand Current (Icw) for 1 s: 140.0 A
- Remarks: 100
- Technical Information: AUXILIARY SWITCH BLOCK
- Terminal Type: Screw Terminals
- E-nummer: 3228800
- ETIM 4: EC002498 - Accessories for low-voltage switch technology
- ETIM 5: EC002498 - Accessories for low-voltage switch technology
- ETIM 6: EC002498 - Accessories for low-voltage switch technology
- Object Classification Code: K
- UNSPSC: 39120000
Buy the 1SBN010010R1010 ABB Auxiliary Contact Block | myMectronic
Purchase the genuine ABB CA5-10 Auxiliary Contact Block securely and efficiently online.
Buy Now
