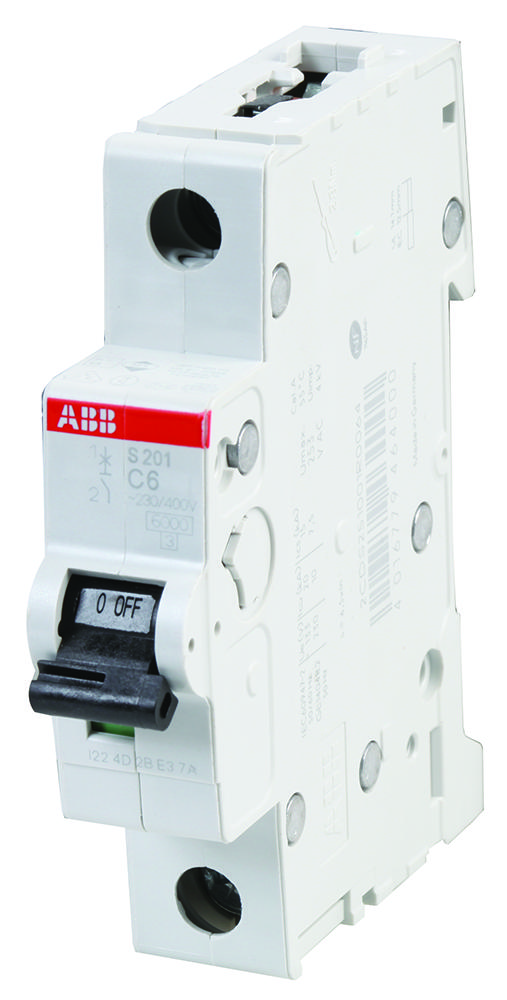

ABB S201C6 Miniature Circuit Breaker
The miniature circuit breaker is a compact, current-limiting device suitable for residential, commercial, and industrial applications. It features both thermal and electromagnetic trip mechanisms for overload and short-circuit protection, ensuring reliable circuit safety. Compliant with IEC, UL, and CSA standards, this device provides a rated current of 6A, a breaking capacity of 6 kA at 230/400 V AC, and has options for various configurations and characteristics. Its DIN rail mounting and robust design make it ideal for modern electrical systems requiring high performance and safety.
ABB S201C6 Miniature Circuit Breaker Specifications:
- Number of Poles: 1
- Rated Current: 6A
- Rated Operational Voltage: 230/400 V AC
- Rated Short-Circuit Capacity: 6 kA at 230/400 V AC
- Breaking Capacity: Up to 6 kA
- Protection Degree: IP40 in enclosure with cover
- Screw Terminal Type: Failsafe Bi-directional Cylinder Terminal
- Connecting Capacity: Busbar 10 / 10 mm2, Flexible 0.75 ... 25 mm2, Rigid 0.75 ... 35 mm2
- Tightening Torque: 2.8 Nm
- Mounting on DIN Rail: IEC 60715 TH35-15 or TH35-7.5
- House Material: Insulation Group II, RAL 7035
- Standards: IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
- Electrical Endurance: 20,000 cycles
- Mechanical Endurance: 20,000 cycles
- Energy Limiting Class: 3
- Impulse Withstand Voltage: 4 kV
- Dielectric Test Voltage: 2 kV (50/60Hz, 1 min)
- Housing Material: Insulation Group II
- Actuator Type: Red ON / Green OFF indicator
- Environmental Conditions: Operation -25°C to +55°C, Storage 40°C to +70°C
- Resistance to Shock: IEC 25g / 2 shocks / 13 ms
- Resistance to Vibrations: IEC 5g, 20 cycles at 5-150 Hz
- Certifications: UL, CSA, IEC/EN
Buy the Siemens Series S200 Circuit Breaker: 201-C6
Purchase the Siemens 201-C6 miniature circuit breaker online today and ensure your electrical safety is reliable and compliant with international standards. Engineered for durability, it features thermal and electromagnetic trip mechanisms, with a rated current of 6A and a breaking capacity of 6 kA at 230/400 V AC. Its DIN rail mounting makes installation straightforward for industrial, commercial, and residential electrical systems. This device offers vital overload and short-circuit protection, providing peace of mind with high performance and a robust design. Order now to secure fast delivery and trusted quality.
Get Siemens 201-C6 today—built for precision and long-lasting durability.
