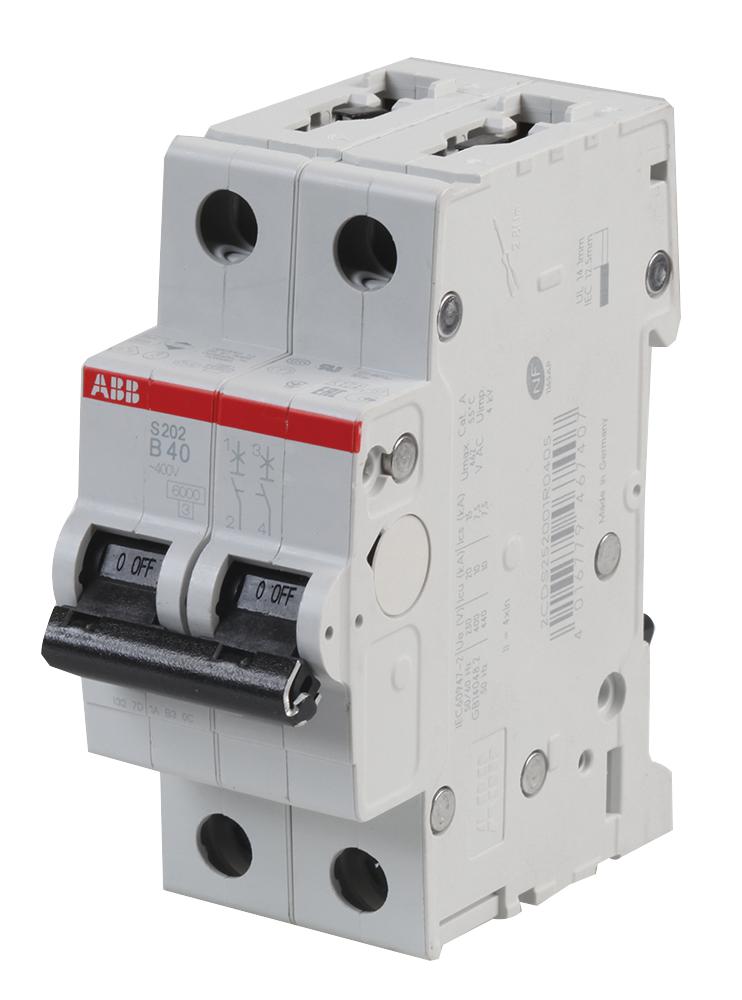

ABB S202B40 Miniature Circuit Breaker
The system pro M compact S200 miniature circuit breaker offers reliable overload and short circuit protection with delayed thermal and electromechanical mechanisms. Designed for residential, commercial, and industrial use, it features a 2-pole configuration, a rated current of 40A, and a breaking capacity up to 6 kA at 230/400 V AC. Its compact size of 69mm depth, 88mm height, and 35mm width makes it suitable for DIN rail mounting, with robust screw terminals rated for up to 35mm cable connection and IP40 protection. It complies with IEC, UL, and CSA standards, ensuring safety and durability in diverse environments.
ABB S202B40 Miniature Circuit Breaker Specifications:
- Number of Poles: 2
- Tripping Characteristic: B
- Rated Current (In): 40A
- Rated Operational Voltage: 400 V AC (IEC 60898-1), 440 V AC (IEC 60947-2)
- Rated Short-Circuit Capacity: 6 kA at 400 V AC
- Rated Ultimate Short-Circuit: 20 kA at 230 V AC
- Rated Service Short-Circuit: 15 kA at 230 V AC
- Rated Impulse Withstand Voltage: 4 kV
- Housing Material: Insulation Group II, RAL 7035
- Degree of Protection: IP40 in enclosure
- Electrical Endurance: 10,000 AC cycles
- Mechanical Endurance: 20,000 cycles
- Terminal Type: Screw Terminals, Fail-safe Bi-directional Cylinder-lift
- Connecting Capacity: Busbar 10 / 10 mm², Flexible/Ferrule 0.75 – 25 mm², Rigid/Stranded 0.75 – 35 mm²
- Tightening Torque: 2.8 Nm
- Mounting: DIN Rail TH35-15 or TH35-7.5, any position
- Standards: IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
- Weight: 0.25 kg
- Dimensions: 69mm depth, 88mm height, 35mm width
- Environmental Conditions: Operation -25°C to +55°C, storage 40°C to 70°C, Shock 25g/2 shocks/13 ms, Vibration 5g/20 cycles/5-150 Hz
- RoHS Compliant
Buy the Buy Schneider Electric Miniature Circuit Breaker Part Number S202B40 Online
Secure your electrical safety with the Schneider Electric Miniature Circuit Breaker designed for reliable overload and short circuit protection. Its compact, DIN rail-mounted form factor ensures easy installation in residential, commercial, and industrial settings. With a rated current of 40A, high breaking capacity, and compliance with IEC, UL, and CSA standards, this breaker offers durability and safety. Make your purchase online today and ensure your electrical system stays protected with high-quality, dependable circuit breakers.
Buy Schneider Electric S202B40 now and experience unmatched reliability and performance in overload and short circuit protection.
Frequently Asked Questions
Where can I buy ABB S202B40?
You can click on the BUY or RFQ button to purchase S202B40 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part S202B40?
You can download the S202B40 datasheet or visit the ABB website for support.
Who is the manufacturer of S202B40?
ABB
