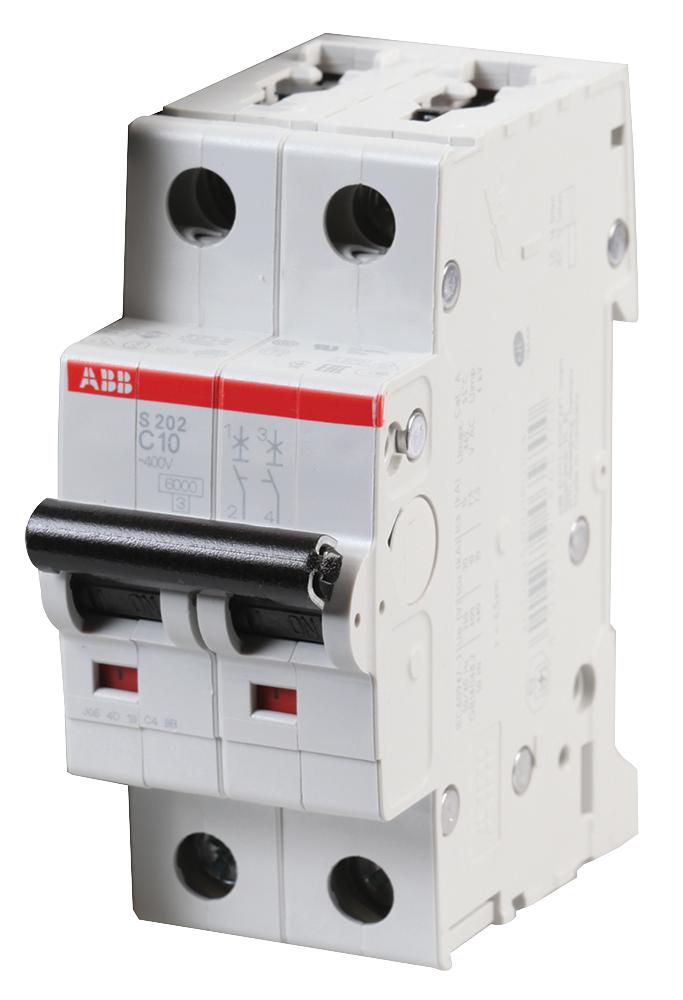

ABB S202C10 Miniature Circuit Breaker
The miniature circuit breaker system pro M compact S200 provides reliable overload and short circuit protection with a 10A rating, suitable for residential and industrial applications. It features a C trip characteristic, 2-pole design, and compliance with IEC/EN 60898-1, IEC/EN 60947-2, UL 1077 standards. The breaker operates at 400 V AC with a breaking capacity up to 6 kA and includes screw terminals with a tightness torque of 2.8Nm. Its compact size, with dimensions of 69mm depth, 88mm height, and 35mm width, makes it ideal for DIN rail mounting in various systems.
ABB S202C10 Miniature Circuit Breaker Specifications:
- Number of Poles: 2
- Tripping Characteristic: Cc
- Rated Current: 140A
- Operational Voltage: 400 V AC
- Rated Short-Circuit Capacity: 6 kA (UL/CSA) / 20 kA (IEC)
- Rated Ultimate Short-Circuit Breaking Capacity: 20 kA at 230 V AC
- Rated Service Short-Circuit Breaking Capacity: 15 kA at 230 V AC
- Rated Insulation Voltage: 440 V AC
- Maximum Operating Voltage: 480 V AC / 277 V AC
- Rated Frequency: 50/60 Hz
- Power Loss: 42W
- Housing Material: Insulation Group II, RAL 7035
- Degree of Protection: IP40
- Terminal Type: Screw Terminals
- Connecting Capacity: Busbar 10/10 mm², flexible 0.75–25 mm²
- Tightening Torque: 2.8 Nm
- Mounting: DIN Rail TH35-15 or TH35-7.5
- Standards: IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
- Certificates: CE, UL, CSA
- Mechanical Endurance: 20,000 cycles
- Electrical Endurance: 20,000 cycles
Buy the Schneider Series S200 Miniature Circuit Breaker: S202C10
Purchase the Schneider S202C10 miniature circuit breaker online today for dependable overload and short circuit protection. This device features a 2-pole design, 10A rated current, and a trip characteristic suitable for various residential, commercial, and industrial applications. Its robust construction and adherence to international safety standards ensure long-lasting performance. Easy to install on DIN rails, it provides optimal protection with a high breaking capacity, making it an essential component for electrical systems. Buy now for reliable circuit management and safety.
Get Schneider S202C10 today—built for precision, durability, and reliable circuit protection in residential and industrial systems.
Frequently Asked Questions
Where can I buy ABB S202C10?
You can click on the BUY or RFQ button to purchase S202C10 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part S202C10?
You can download the S202C10 datasheet or visit the ABB website for support.
Who is the manufacturer of S202C10?
ABB
