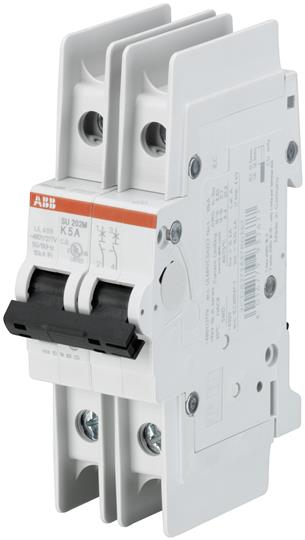

ABB SU202MK1 Miniature Circuit Breaker
ABB SU202M-K1 Miniature Circuit Breaker, UL 489 compliant, 2-pole configuration, 1 Amp rated current, designed for 480Y/277V installations. Features a K-Trip characteristic curve and a maximum interrupting capacity of 10 kA. Its robust thermoplastic housing offers protection against external influences, while the twin terminal design allows wiring up to 35 mm² with captive screws. Suitable for both AC and DC applications, this device ensures reliable branch protection in industrial and commercial electrical systems, with a clear contact position indicator and high mechanical endurance.
ABB SU202MK1 Miniature Circuit Breaker Specifications:
- Standards: UL 489, CSA 22.2 No. 5, IEC/EN 60947-2
- Poles: 2P
- Rated current: 1A
- Rated voltage: 480Y/277 Vac
- Maximum interrupting capacity: 10kA
- Tripping characteristics: K-Trip
- Housing material: Thermoplastic
- Protection degree: IP20/IP40 in enclosure
- Mechanical endurance: 20,000 operations
- Shock resistance: 25 g for 13 ms shocks
- Vibration resistance: 5 g for 20 cycles at 5-150 Hz
- Ambient temperature: -25°C to +70°C
- Mounting: DIN rail, 35 mm
- Cross-section of conductors: 18-4 AWG
- Tightening torque: 2.8 Nm
- Dimensions: Approximately 88 x 69 x 175 mm
- Weight: Approx. 115 g
Buy the ABB SU202M-K1 – Reliable Circuit Protection for Industrial Applications
Order the ABB SU202M-K1 miniature circuit breaker online today to ensure superior branch protection with UL 489 compliance. Its durable thermoplastic housing, high interrupting capacity, and easy DIN rail mounting make it ideal for industrial electrical systems. This 2-pole device with a 1 Amp rated current features a K-Trip characteristic curve for precise tripping performance and provides reliable operation for both AC and DC applications. Secure your electrical installations with this robust and easy-to-install circuit breaker available online with fast delivery convenience.
Buy ABB SU202M-K1 miniature circuit breaker now and experience unmatched reliability and performance in electrical protection solutions.
