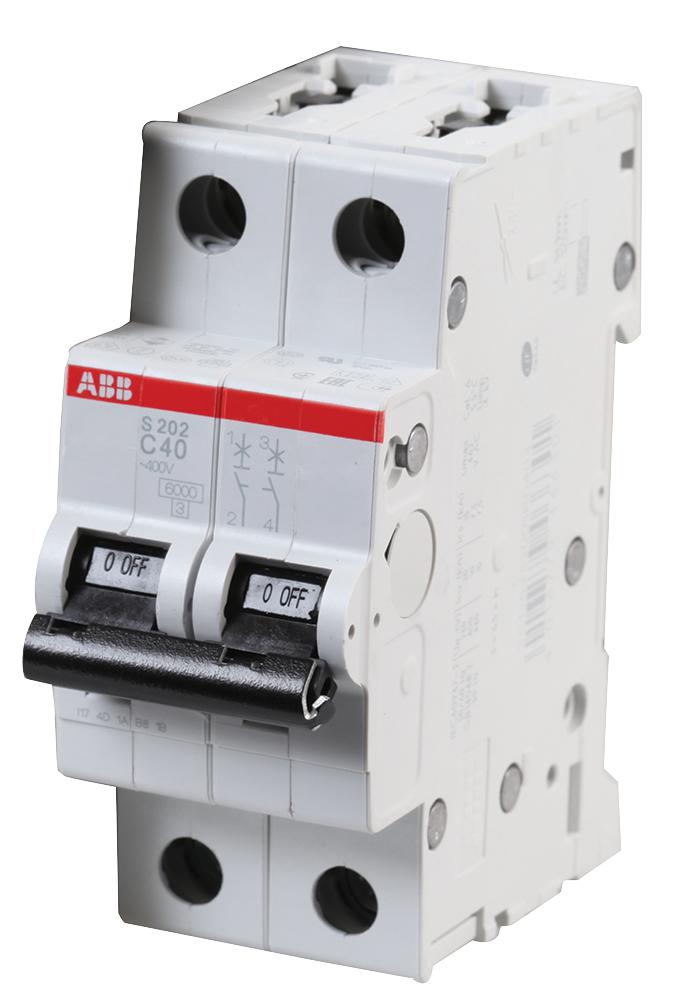

ABB S202C40 Circuit Breaker
The miniature circuit breaker S202C40 is a 2-pole device rated at 40A with a C trip characteristic, suitable for residential, commercial, and industrial applications. It features a compact design with IP40 protection, ensuring reliable performance in various environments. The breaker complies with IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, and CSA 22.2 No. 235 standards, providing safety and durability. Its dimensions are 69mm depth, 88mm height, and 35mm width. It supports a maximum short-circuit capacity of 6kA at 230/400V AC, making it ideal for protecting electrical circuits efficiently.
ABB S202C40 Circuit Breaker Specifications:
- Number of Poles: 2
- Rated Current (In): 40A
- Tripping Characteristic: Cc
- Rated Operational Voltage: 400 V AC
- Maximum Short-Circuit Capacity (Icn): 6 kA at 230/400 V AC
- Rated Insulation Voltage (Uj): 440 V AC
- Rated Impulse Withstand Voltage: 4 kV
- Dielectric Test Voltage: 2 kV for 1 min
- Housing Material: RAL 7035, Insulation group II
- Degree of Protection: IP40
- Tightening Torque: 2.8 Nm
- Mounting: DIN rail TH35-15 or TH35-7.5
- Dimensions: Depth 69mm, Height 88mm, Width 35mm
- Environmental Conditions: Operation from -25°C to +55°C, storage from 40°C to 70°C, shock resistance 25g/2 shocks/13 ms, vibration resistance 5g/20 cycles
- Standards: IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, CSA 22.2 No. 235
Buy the Siemens Series S200 Circuit Breaker: 2-Pole 40A C Trip Protection
Secure your electrical systems with the Siemens Series S200 2-pole miniature circuit breaker rated at 40A. Designed with a C trip characteristic, it ensures swift overload and short circuit protection. Its compact size, compliance with international standards, and high short-circuit capacity make it ideal for residential, commercial, and industrial installations. Easy to mount on DIN rails, this breaker offers durability, safety, and peace of mind. Purchase online now and safeguard your electrical infrastructure with Siemens quality.
Buy Siemens Series S200 40A miniature circuit breaker now and experience unmatched reliability and performance in electrical circuit protection.
Frequently Asked Questions
Where can I buy ABB S202C40?
You can click on the BUY or RFQ button to purchase S202C40 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part S202C40?
You can download the S202C40 datasheet or visit the ABB website for support.
Who is the manufacturer of S202C40?
ABB
