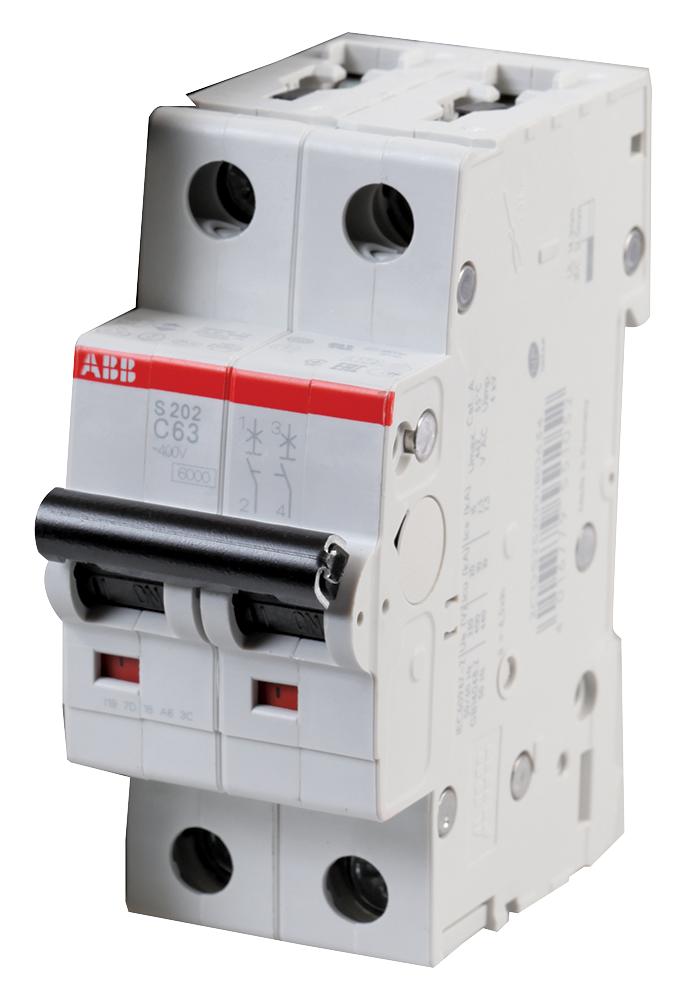

ABB S202C63 Miniature Circuit Breaker
The miniature circuit breaker S200 series is designed for reliable overload and short circuit protection in residential, commercial, and industrial applications. It features two tripping mechanisms: delayed thermal for overload and electromechanical for short circuits, with various characteristics and configurations. Rated at 63A with a breaking capacity of up to 6 kA at 230/400 V AC, this compact device complies with international standards including IEC/EN 60898-1 and UL1077. Its durable construction and optional auxiliary contacts optimize space and enhance electrical safety and efficiency.
ABB S202C63 Miniature Circuit Breaker Specifications:
- Number of Poles: 2
- Tripping Characteristic: Cc
- Rated Current: 63A
- Rated Operational Voltage: 400 V AC
- Maximum Operating Voltage: 440 V AC
- Rated Short-Circuit Capacity: 6 kA at 230/400 V AC
- Rated Insulation Voltage: 440 V AC
- Rated Frequency: 50/60 Hz
- Rated Impulse Withstand Voltage: 4 kV
- Housing Material: Insulation group II, RAL 7035, black
- Degree of Protection: IP40 in enclosure with cover
- Mechanical Endurance: 20,000 cycles
- Electrical Endurance: 10,000 cycles
- Terminal Type: Screw Terminal, Failsafe Bi-directional Cylinder-lift
- Connecting Capacity: Rigid and stranded conductors up to 35 mm²
- Tightening Torque: 2.8 Nm
- Mounting: DIN Rail, any position
- Standards: IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
Buy the Buy Schneider Electric Miniature Circuit Breaker Part Number S202C63 Online
Secure your electrical systems today by purchasing the Schneider Electric Miniature Circuit Breaker online. Designed for durable overload and short circuit protection, this 63A device features thermal and electromechanical tripping mechanisms, high breaking capacity, and compliance with international standards. Its compact design optimizes space with optional auxiliary contacts, suitable for residential, commercial, and industrial applications. Enjoy fast, reliable procurement and enjoy peace of mind with superior safety and performance in your electrical installations.
Buy Schneider Electric S202C63 now and experience unmatched reliability and performance for your electrical protection needs.
Frequently Asked Questions
Where can I buy ABB S202C63?
You can click on the BUY or RFQ button to purchase S202C63 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part S202C63?
You can download the S202C63 datasheet or visit the ABB website for support.
Who is the manufacturer of S202C63?
ABB
