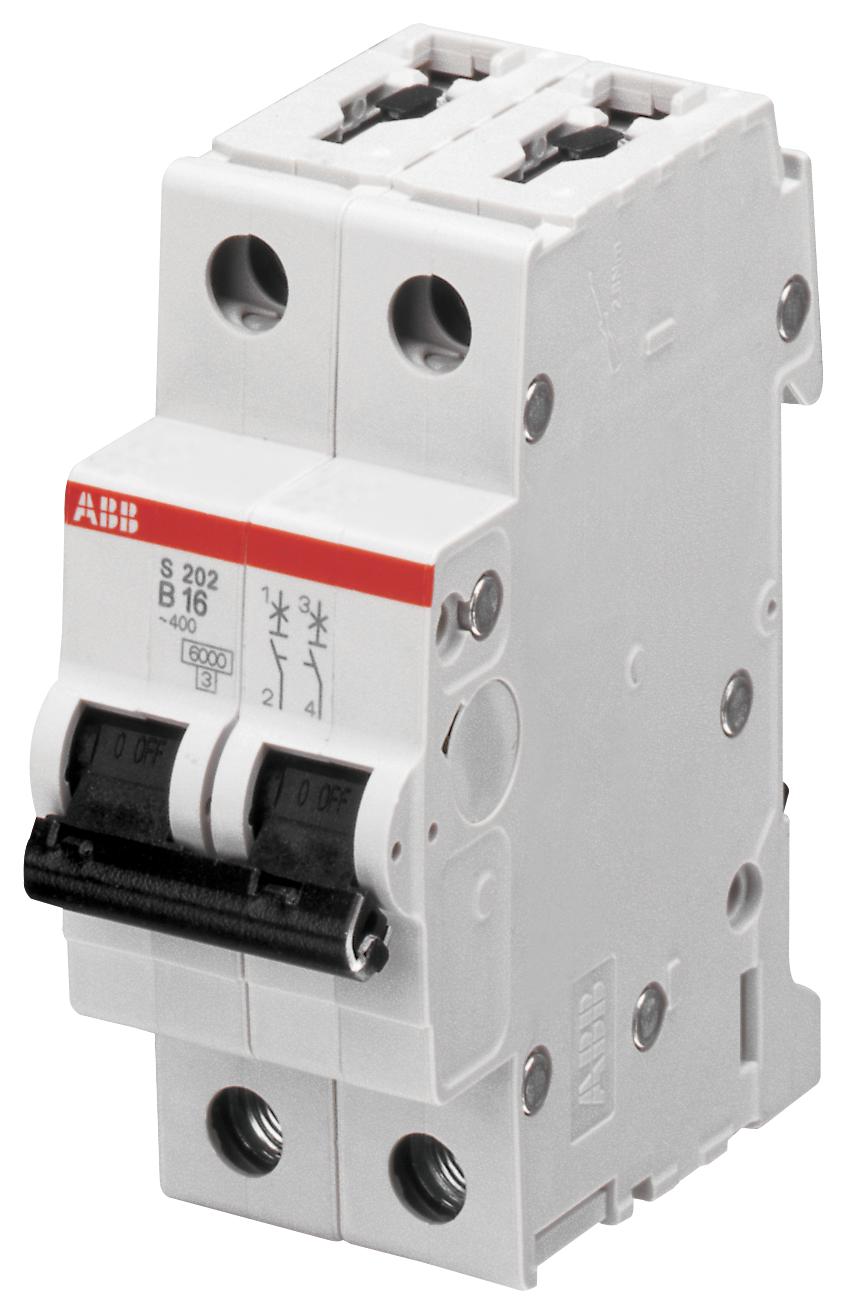

ABB S202MD20 Miniature Circuit Breaker
System pro M compact S200M miniature circuit breakers are current limiting devices designed for residential, commercial, and industrial applications. They feature two trip mechanisms: thermal for overload protection and electromechanical for short circuit. These 2-pole breakers operate at a rated current of 20A, with a breaking capacity of up to 10kA at 230/400V AC. The compact design includes screw terminals, DIN rail mounting, and IP40 enclosure, meeting IEC/EN standards for durability and safety in various environments.
ABB S202MD20 Miniature Circuit Breaker Specifications:
- Number of Poles: 2
- Rated Current (In): 20A
- Rated Operational Voltage: 400 V AC
- Rated Insulation Voltage: 440 V AC
- Rated Short-Circuit Capacity: 10 kA at 230/400 V AC
- Breaking Capacity (Icu): 10 kA (230 V AC), 25 kA (230 V AC short circuit)
- Rated Ultimate Short-Circuit Breaking Capacity: 18.8 kA
- Rated Service Short-Circuit Breaking Capacity: 18.8 kA
- Rated Frequency: 50/60 Hz
- Rated Impulse Withstand Voltage: 6.2 kV (Sealed)
- Dielectric Test Voltage: 2 kV (1 min)
- Maximum Operating Voltage: 440 V AC
- Energy Limiting Class: 3
- Degree of Protection: IP40
- Connection Type: Screw Terminals, Failsafe Bi-directional Cylinder-lift Terminal
- Mounting: DIN Rail TH35-7.5 or TH35-15
- Operating Temperature Range: -25°C to +55°C
- Environmental Resistance: IEC 60068-2-27, IEC 60068-2-6
- Certification Standards: IEC/EN 60898-1, IEC/EN 60947-2
- Electrical Endurance: 20,000 cycles
- Mechanical Endurance: 20,000 cycles
- Housing Material: RAL 7035, Insulation Group II
- Terminal Torque: 2 Nm
- Screwdriver: Pozidriv 2
Buy the Electrium 2CDS272001R0201 – Reliable Circuit Protection for Industrial Applications
Purchase the Electrium miniature circuit breaker online today to ensure your electrical system's safety and reliability. Designed for residential, commercial, and industrial uses, it features thermal and electromechanical trip mechanisms, a rated current of 20A, and a breaking capacity of up to 10kA at 230/400V AC. The compact, IP40-rated enclosure with screw terminals and DIN rail mount makes installation simple and flexible. With IEC standards compliance, this breaker guarantees durable, high-quality circuit protection for diverse environments, making it a vital addition to your electrical setup.
Buy Electrium 2CDS272001R0201 now and experience unrivaled safety and durability with this high-performance miniature circuit breaker.
Frequently Asked Questions
Where can I buy ABB S202MD20?
You can click on the BUY or RFQ button to purchase S202MD20 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part S202MD20?
You can download the S202MD20 datasheet or visit the ABB website for support.
Who is the manufacturer of S202MD20?
ABB
