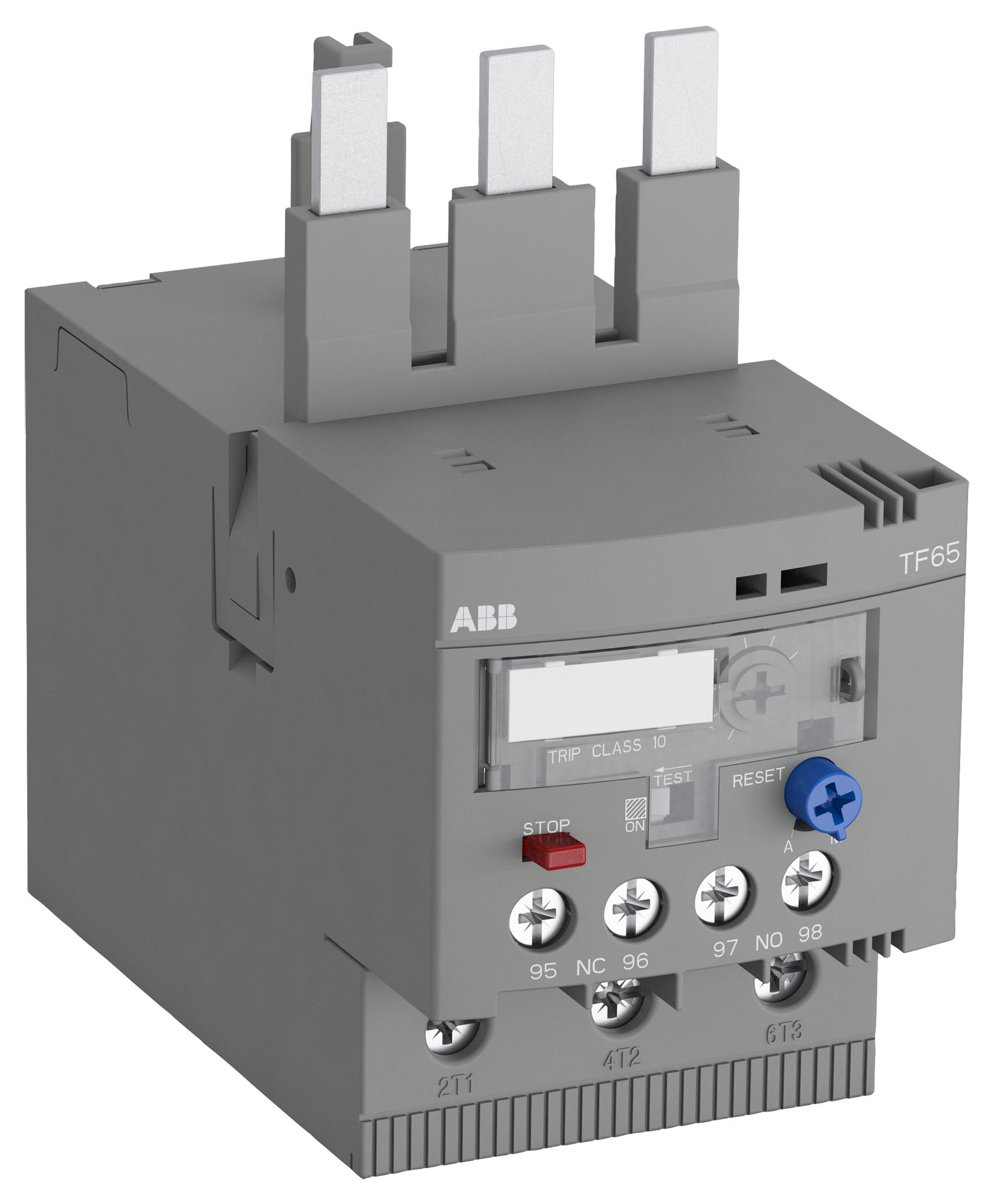

ABB TF6528 thermal overload relay
The TF65-28 thermal overload relay provides reliable and fast protection for motors, offering trip class 10, temperature compensation, and manual or automatic reset options. It features a trip contact, signal contact, trip-free mechanism, and trip indication, making it suitable for protecting main circuits. The relay connects directly to block contactors, with accessories available for mounting. It operates at rated voltages up to 680 V AC/DC, with a rated current of 28A, and complies with IEC and UL standards for safety and performance, ideal for industrial motor protection or control systems.
ABB TF6528 thermal overload relay Specifications:
- Rated Operational Voltage: Main Circuit 680 V AC/DC, Auxiliary Circuit 600 V AC/DC
- Rated Current: 28A
- Trip Class: 10
- Connection Capacity Main Circuit: Flexible with Ferule 1/2x 0.75 ... 2.5 mm², Rigid 1/2x 0.75 ... 4 mm²
- Protection Degree: IP20
- Housing Material: Not specified
- Rated Frequency: 50/60 Hz
- Operating Temperature Range: -25°C to +60°C
- Standards: IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1
- Power Loss: 3.1W
- Response Time: 11 ms
Buy the Innovative TF65-28 – Reliable Thermal Overload Relay for Industrial Applications
Enhance your motor protection system with the TF65-28 thermal overload relay. Designed for main circuit protection, it offers reliable and rapid response to overloads. Featuring manual or automatic reset options, trip class 10, and temperature compensation, this relay ensures optimal operation in industrial settings. It complies with IEC and UL standards, rated up to 680 V AC/DC and 28A current, making it ideal for motor control and automation systems. Easy to connect and mount, it guarantees safety and efficiency in critical applications.
Buy TF65-28 thermal overload relay now and experience unmatched motor protection with fast response, adjustable features, and high reliability suitable for demanding industrial environments.
