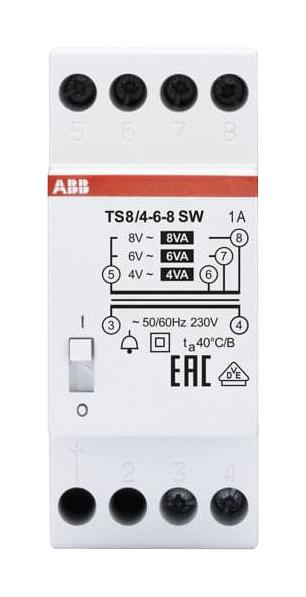

ABB TS8468SW Bell Transformer
The ABB TS 8/4-6-8SW is a non-inherently short-circuit proof bell transformer with safety extremely-low voltage secondary (SELV). Designed for discontinuous load applications, it features a primary voltage of 230 VAC and a secondary voltage range of 4-6-8 V AC. Compact and lightweight at 0.35 kg, this transformer supports a maximum output current of 2A with power loss up to 4W. Suitable for low voltage signaling and alarm systems, it complies with RoHS standards and is ideal for modular DIN rail installations in control and signaling devices.
ABB TS8468SW Bell Transformer Specifications:
- Power Loss: Maximum 4 W
- Output Current Maximum: 2A
- Primary Voltage: 230 VAC
- Secondary Voltage: 4-6-8 V AC
- Dimensions: Width 35mm, Height 85mm, Length 65mm, Depth 65mm
- Weight: 0.35 kg
- RoHS Status: Compliant
- Environmental and Safety Approvals: CE, RoHS
- Application: Bell signaling, low-voltage control circuits
- Power Supply: 230V
- Switch: With switch
- Certifications: CE, WEEE Category 5
- Object Classification Code: T (Small Equipment)
Buy the ABB Series TS 8/4-6-8SW Bell Transformer: TS8468SW
Order the ABB TS 8/4-6-8SW bell transformer online today for high-quality, safety-certified low-voltage signaling and control applications. This compact transformer features a primary voltage of 230V and secondary options of 4, 6, and 8 volts AC, supporting a maximum load of 2A. Its lightweight construction of 0.35 kg makes installation easy, and it meets RoHS standards for environmental safety. Perfect for signaling, alarm systems, and control panels, ensuring reliable operation in industrial and commercial settings.
Get ABB TS 8/4-6-8SW today—designed for reliable bell and signaling applications with safety and efficiency.
