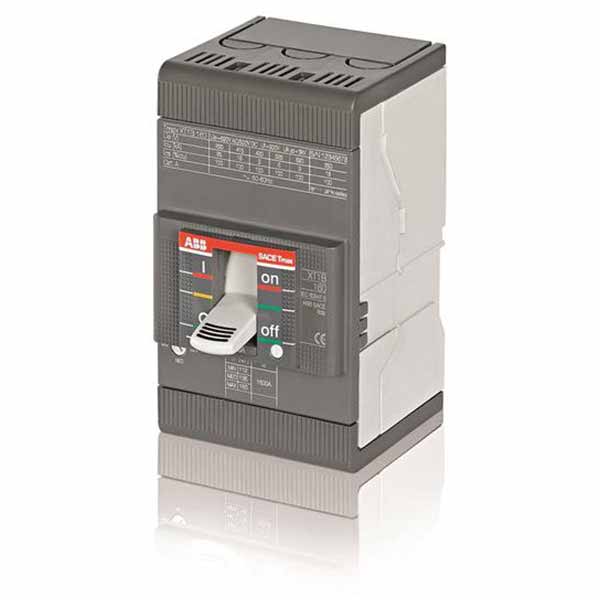

ABB XT1NU3030AFF000XXX Molded Case Circuit Breaker
The ABB SACE Tmax XT is a new generation of molded case circuit breakers engineered for exceptional versatility and performance. These breakers are available in three-pole and four-pole configurations, with fixed, plug-in, and withdrawable options, catering to a broad spectrum of installation requirements. Featuring advanced electronics and a wide range of trip units, including thermal magnetic and electronic options, the Tmax XT provides precise fault protection and enhanced system reliability. With current ratings up to 250A and voltage ratings up to 600V, these breakers are suitable for both AC and DC applications, offering extended breaking capacities up to 200kA. Globally certified and designed for ease of installation, the SACE Tmax XT represents a significant advancement in circuit protection technology.
ABB XT1NU3030AFF000XXX Molded Case Circuit Breaker Specifications:
- Rated Voltage (AC) 50-60Hz [V]: 600Y/347
- Rated Voltage (DC) [V]: 500
- Interrupting ratings N S H 240 V (AC) [kA]: 50 65 100
- Interrupting ratings N S H 480 V (AC) [kA]: 25 35 65
- Interrupting ratings N S H 600Y/347 V (AC) [kA]: 18 22 25
- Interrupting ratings N S H 600 V (AC) [kA]: –
- Interrupting ratings N S H 250 V (DC) 2 poles in series [kA]: 35 42 50
- Interrupting ratings N S H 500 V (DC) 3 poles in series [kA]: –
- Interrupting ratings N S H 500 V (DC) 4 poles in series [kA]: 35 50 50
- Interrupting ratings N S H 600 V (DC) 3 poles in series [kA]: –
- Mechanical life [No. Operations]: 25000
- No. Hourly operations: 240
- Dimensions - Fixed 3 poles [mm]/[in]: [76,2 x 70 x 130] / [3 x 2.75 x 5.12]
- Dimensions - Fixed 4 poles [mm]/[in]: [101,6 x 70 x 130] / [4 x 2.75 x 5.12]
- Weight Fixed 3/4 poles [kg]/[lbs]: [1,1 - 2.43] / [1,4 - 3.07]
- Weight Plug-in (EF) 3/4 poles [kg]/[lbs]: [2,21 - 4.87] / [2,82 - 6.22]
- Total opening time CB with SOR [ms]: 15
- Total opening time CB with UVR [ms]: 15
- Trip units for power distribution: TMF, TMA, Ekip LS/I, Ekip LSI, Ekip LSIG, Ekip E-LSIG
