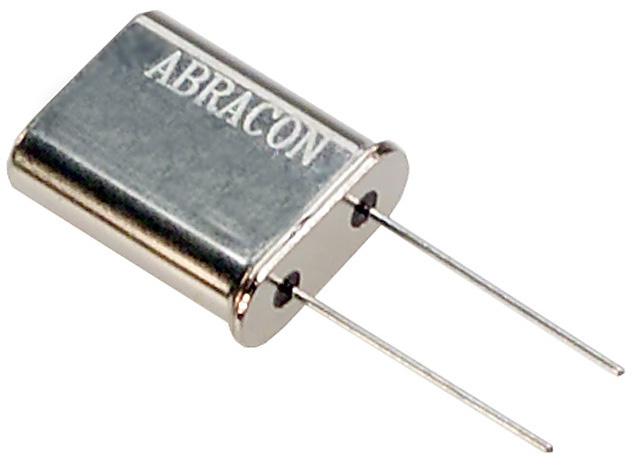

ABRACON AB147456MHZB2 Crystal Oscillator
This crystal oscillator component is designed for reliable frequency control in clock and timing circuits across various electronic devices. With a frequency range from 1.8432MHz to 160.00MHz, it offers high precision, stability over temperature, and low equivalent series resistance. It features various mounting options including insulator tab, vinyl sleeve, and metal jacket with formed leads, suitable for industrial and commercial applications where accurate timing signals are essential. RoHS compliant, it is ideal for use in CPU, memory, data communication, and other electronic systems requiring precise oscillation.
ABRACON AB147456MHZB2 Crystal Oscillator Specifications:
- Frequency Range: 1.8432MHz to 160.00MHz
- Operation Mode: Fundamental, 3rd Overtone, 5th Overtone, 7th Overtone
- Operating Temperature: 0°C to +70°C (options up to -30°C to +70°C or +35°C)
- Storage Temperature: -55°C to +125°C
- Frequency Tolerance: ±50 ppm @+25°C
- Frequency Stability: ±100 ppm over temperature (+25°C reference)
- Equivalent Series Resistance: varies with frequency, as per table
- Shunt Capacitance: 7 pF
- Load Capacitance: 18 pF (optional)
- Drive Level: 100 to 1000 μW
- Insulation Resistance: 500 MΩ @100Vdc
- Dimensions: 11.5x 5.0 x 13.46 mm
- Package Options: Insulator tab, vinyl sleeve, metal jacket with formed leads
- RoHS/RoHS II compliant
Buy the AbraCon 147456MHZB2 – Reliable Crystal Oscillator for Industrial Applications
Order the AbraCon crystal oscillator online today and enjoy fast delivery of a high-precision, RoHS-compliant component. Perfect for embedded systems, communication equipment, and precision timing circuits, this oscillator offers stability, low resistance, and wide frequency coverage from 1.8432MHz up to 160MHz. Its various mounting options make it suitable for a range of industrial and commercial applications, ensuring reliable operation under different temperature conditions. Upgrade your project with confidence—purchase now for excellent performance and quality assurance.
Buy AbraCon 147456MHZB2 crystal oscillator now and ensure precise frequency control for your electronic projects and industrial systems.
Frequently Asked Questions
Where can I buy ABRACON AB147456MHZB2?
You can click on the BUY or RFQ button to purchase AB147456MHZB2 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AB147456MHZB2?
You can download the AB147456MHZB2 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AB147456MHZB2?
ABRACON
