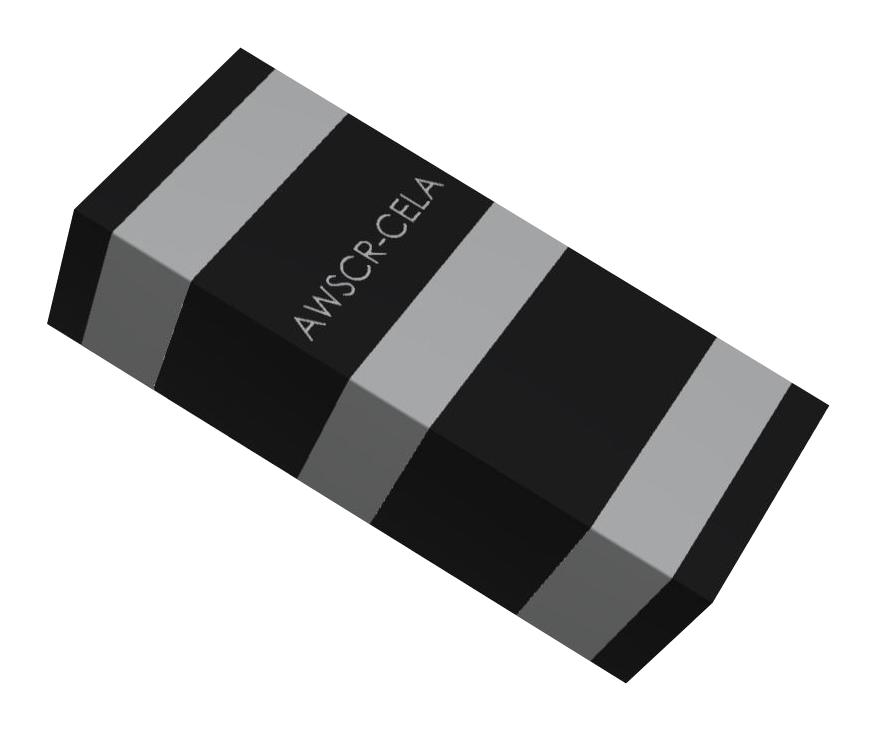

ABRACON AWSCR1200CELAC33T3 Miniature Ceramic Resonator
The ABRACON AWSCR-12.00CELA-C33-T3 is a miniature ceramic resonator ideal for applications requiring a stable and reliable frequency source. Its compact size and low profile make it suitable for space-constrained designs. Common applications include metering systems, remote control devices, microprocessor circuits, industrial control systems, and electric appliances. The resonator is RoHS compliant and designed for ease of integration into various electronic circuits, offering a robust solution for timing and synchronization needs.
ABRACON AWSCR1200CELAC33T3 Miniature Ceramic Resonator Specifications:
- Frequency Range: 8.00 - 12.00 MHz
- Resonant Impedance (Ro): 40 Ω (8.00 MHz - 12.00 MHz)
- Standard Built-in Capacitance (C1=C2): 15 pF (8.00 MHz - 12.00 MHz, Tol 1pF ± 20%)
- Frequency Tolerance: -0.5 to +0.5 %
- Temperature Coefficient of Oscillation: -0.2 to +0.2 %
- Withstanding Voltage: 50 V DC (1 min max)
- Voltage Rating: 6 V DC / 15 Vp-p AC
- Insulation Resistance (Ri): 500 MΩ (10V, 1 min)
- Operation Temperature: -40 to +85 ºC
- Storage Temperature: -55 to +85 ºC
- Aging Rate (Fosc): -0.2 to +0.2 % (for 10 years)
- Size: 3.2 x 1.3 x 1.0 mm
- Packaging: 3000 pcs/reel
Buy the AWSCR-12.00CELA-C33-T3 ABRACON Miniature Ceramic Resonator | myMectronic
Securely purchase the ABRACON AWSCR-12.00CELA-C33-T3 online and ensure your project's success with reliable components.
Buy Now
Frequently Asked Questions
Where can I buy ABRACON AWSCR1200CELAC33T3?
You can click on the BUY or RFQ button to purchase AWSCR1200CELAC33T3 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AWSCR1200CELAC33T3?
You can download the AWSCR1200CELAC33T3 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AWSCR1200CELAC33T3?
ABRACON
