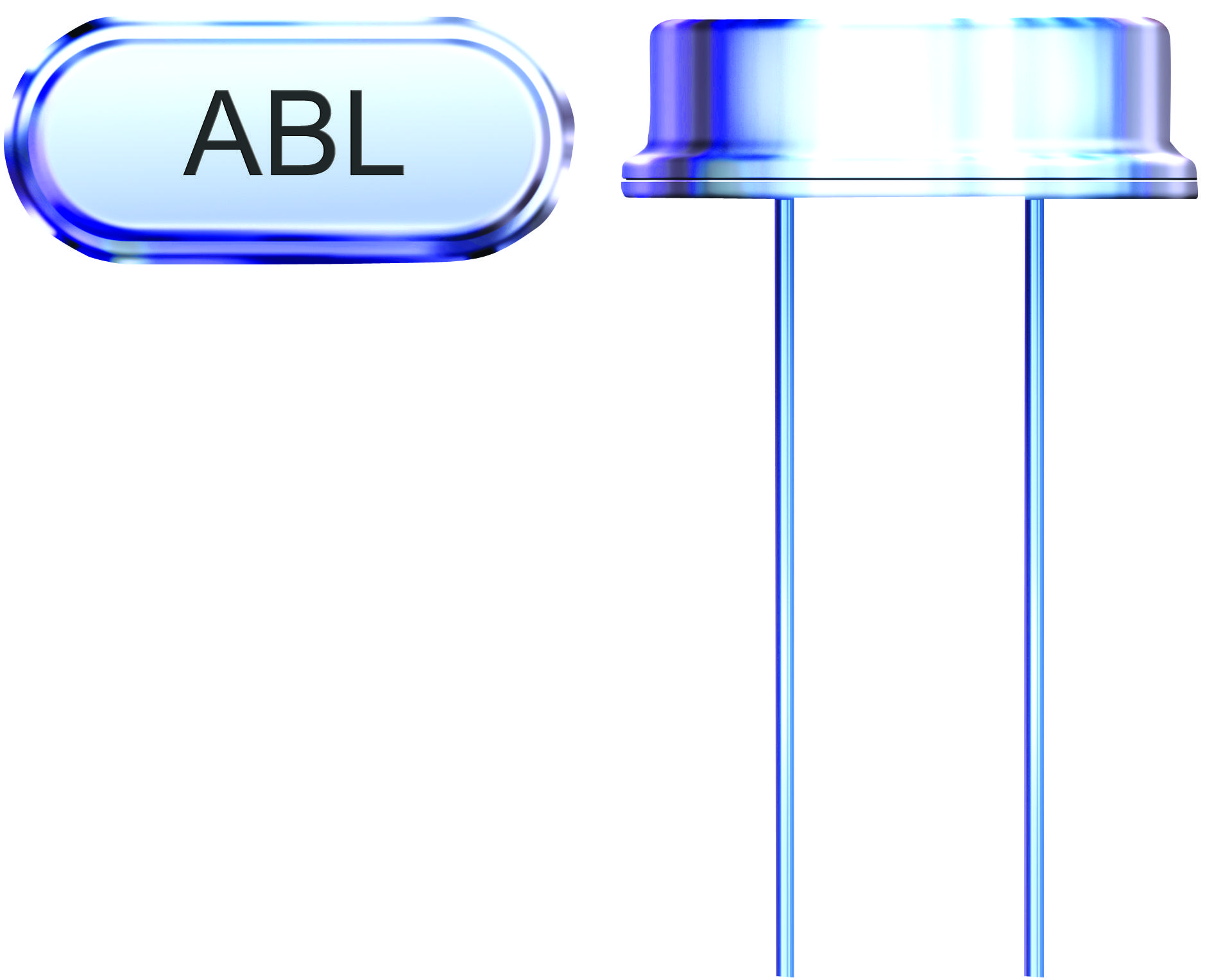

ABRACON ABL25000MHZB2F Microprocessor Crystal Oscillator
The ABL series microprocessor crystal oscillator is hermetically sealed and not moisture sensitive. It offers high reliability, tight frequency stability, and extended temperature range. Encased in a proven resistance-welded metal package, it is suitable for use in home electronics, modems, high-precision TCXO, and clock applications. Its typical applications include communications and networking, computers and peripherals, clock and timing systems, consumer electronics, and industrial equipment.
ABRACON ABL25000MHZB2F Microprocessor Crystal Oscillator Specifications:
- Frequency range: 3.579545 MHz, 24.01 MHz, 24.01 MHz (standard), options available
- Operating Temperature: 0°C to +70°C, -40°C to +125°C, -55°C to +125°C options
- Storage Temperature: -55°C to +125°C
- Frequency Tolerance: -50 ppm to +50 ppm, options available
- Frequency Stability: 30 ppm over operating temperature (ref. +25°C), options available
- Shunt capacitance: 7 pF
- Load capacitance: 18 pF
- Drive Level: 100 to 1000 nW
- Aging: ±5 ppm per year at +25°C
- Insulation Resistance: 500 MΩ @ 100Vdc
- Equivalent Series Resistance (ESR): varies with frequency, e.g., 180 Ω at 3.579 MHz
- Dimensions: 11.5 x 5.0 x 3.5 mm
- RoHS Compliance: Yes
- Certification: ISO 9001:2008
Buy the Buy Abracon ABL Series Microprocessor Crystal Part Number ABL25000MHZB2F Online
Purchase the Abracon ABL series microprocessor crystal oscillator online today for reliable performance in clock, communication, and industrial applications. Featuring hermetic sealing, extended temperature range, and high stability, it ensures accurate timing and durability. Suitable for applications like modems, computers, and consumer electronics. Order now to benefit from precise frequency stability, low aging characteristics, and RoHS compliance. Simplify your design with high-quality quartz crystal oscillators that guarantee long-term performance across various demanding environments.
Get Abracon ABL25000MHZB2F today—built for high reliability and precise timing in electronic devices.
Frequently Asked Questions
Where can I buy ABRACON ABL25000MHZB2F?
You can click on the BUY or RFQ button to purchase ABL25000MHZB2F from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABL25000MHZB2F?
You can download the ABL25000MHZB2F datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABL25000MHZB2F?
ABRACON
