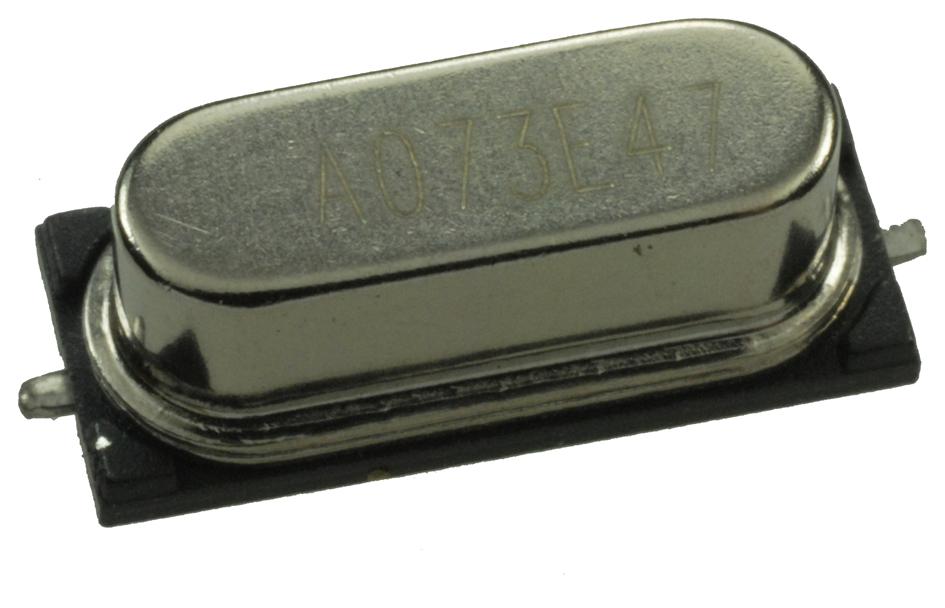

ABRACON ABLS16384MHZD4HT Low Profile SMD Crystal
This surface-mount low profile crystal is ideal for compact electronic devices requiring precise frequency control. Operating between 3.579545 MHz and 75 MHz, it features high stability, RoHS compliance, and is suitable for a broad temperature range from -55°C to +125°C. Its hermetically sealed design ensures moisture resistance, making it perfect for clock, timing, and wireless applications in computers, modems, and microprocessors. Its small form factor of 15 x 4.7 x 2.0 mm allows easy integration into space-constrained designs, offering reliable performance across various industrial and commercial systems.
ABRACON ABLS16384MHZD4HT Low Profile SMD Crystal Specifications:
- Frequency Range: 3.579545 MHz to 75 MHz
- Operation Mode: Fundamental or 3rd OT (Overtone), AT cut or BT cut
- Frequency Tolerance: ±50 ppm at +25°C
- Frequency Stability: ±50 ppm over operating temperature
- Operating Temperature: -55°C to +125°C
- Storage Temperature: -55°C to +125°C
- Shunt Capacitance: 18 pF max
- Drive Level: 1 mW max
- Insulation Resistance: 500 MΩ at 100V dc
- Material: Hermetically sealed, RoHS compliant
- Dimensions: 15 x 4.7 x 2 mm (length x width x height), SMD package
- Reflow Profile: Peak temperature +260°C for 60-120 seconds
- Application: Clocks, timing circuits, wireless communication, microprocessors.
Buy the Buy Abracon ABLS Series Low Profile SMD Crystal Part Number ABLS16384MHZD4HT
Discover the high-reliability Abracon Low Profile SMD Crystal designed for precise frequency control in a compact form factor. Suitable for clocks, microprocessors, wireless modules, and timing systems, this crystal operates from 3.579545 MHz to 75 MHz with ±50 ppm tolerance and stability over wide temperatures. Its hermetically sealed design guarantees moisture resistance and longevity. Perfect for industrial and commercial applications, it offers easy surface mounting and features optimized reflow profile compatibility. Order online now for dependable performance in your electronic designs!
Order your Abracon Series ABLS crystal today and ensure accurate timing for your electronic projects with reliable, RoHS-compliant performance.
Frequently Asked Questions
Where can I buy ABRACON ABLS16384MHZD4HT?
You can click on the BUY or RFQ button to purchase ABLS16384MHZD4HT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABLS16384MHZD4HT?
You can download the ABLS16384MHZD4HT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABLS16384MHZD4HT?
ABRACON
