ABRACON ABLS10000MHZ16A4HT Low Profile Crystal
This low-profile SMD crystal offers precise frequency stability ideal for clock and timing functions in electronic devices. Designed with hermetic sealing and RoHS compliance, it supports a wide temperature range from -55°C to +125°C, ensuring reliable performance in demanding environments. Operating at frequencies from 3.579545 MHz to 75 MHz with a stability of ±50 ppm at +25°C, it features low drive levels and high insulation resistance, making it suitable for computers, modems, wireless applications, and microprocessors requiring stable, high-precision oscillators in compact form factors.
ABRACON ABLS10000MHZ16A4HT Low Profile Crystal Specifications:
- Frequency Range: 3.579545 MHz to 75 MHz
- Operation Mode: AT cut or BT cut
- Frequency Tolerance at +25°C: ±50 ppm
- Frequency Stability: ±50 ppm over operating temp
- Operating Temperature: -55°C to +125°C
- Storage Temperature: -55°C to +125°C
- Shunt Capacitance: 18 pF max
- Load Capacitance: 1 pF (see options)
- Drive Level: 0.1 mW typical
- Insulation Resistance: ≥ 500 MΩ at 100V
- Moisture Sensitivity Level: Not applicable
- RoHS Compliant: Yes
- Dimensions: 4.7 x 4.2 x 1.5 mm
- Material: Hermetically sealed package
- Application: Clock generators, timing circuits, microprocessor clock signals

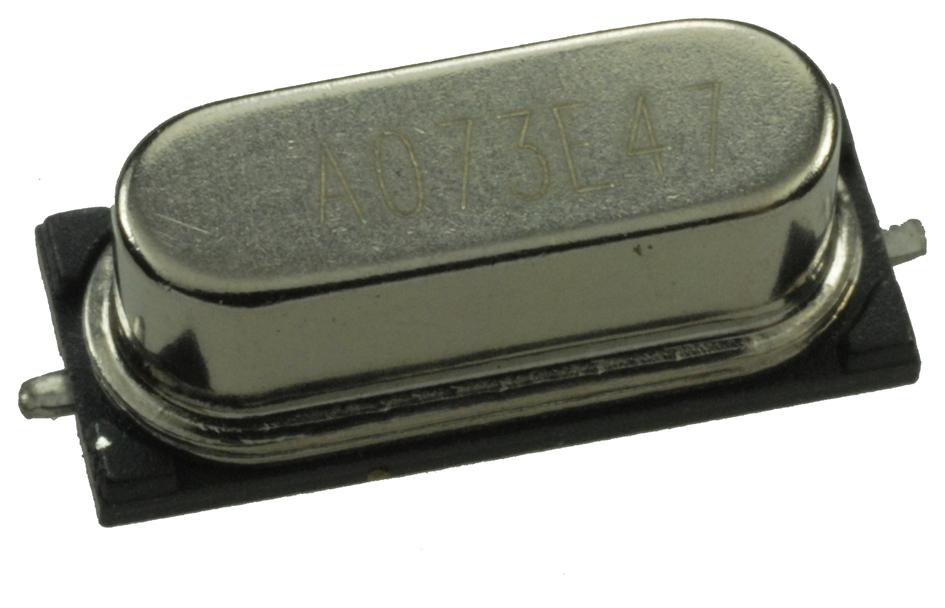

Buy the Buy Abracon HC/49US SMD Low Profile Crystal Part Number ABLS10000MHZ16A4HT Online
Purchase the Abracon Low Profile Crystal online today to enhance your electronic projects with high precision timing. This hermetically sealed, RoHS-compliant component supports frequencies up to 75 MHz and offers excellent stability over a wide temperature range from -55°C to +125°C. Its compact size of 4.7 x 4.2 mm makes it ideal for space-constrained applications such as clocks, microprocessors, and wireless devices. With low drive levels and high insulation resistance, this crystal guarantees reliable operation essential for demanding electronics, providing you with quality and peace of mind.
Order your Abracon Series ABLS10000MHZ16A4HT low profile crystal today and ensure your timing circuits operate with exceptional stability and accuracy.
Frequently Asked Questions
Where can I buy ABRACON ABLS10000MHZ16A4HT?
You can click on the BUY or RFQ button to purchase ABLS10000MHZ16A4HT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABLS10000MHZ16A4HT?
You can download the ABLS10000MHZ16A4HT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABLS10000MHZ16A4HT?
ABRACON
