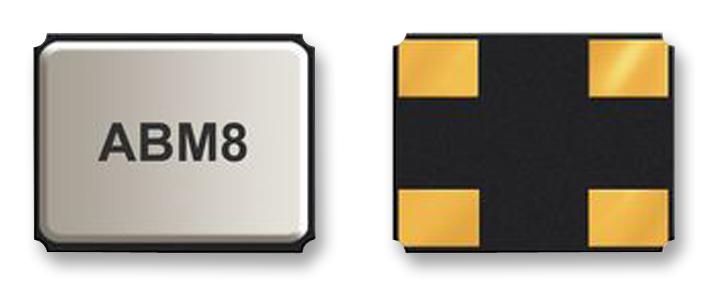

ABRACON ABM818432MHZB2T Ceramic SMD Crystal
The ultra miniature ceramic SMD crystal is hermetically sealed, moisture-sensitive, and RoHS compliant. Compact at 3.2x2.5x0.8mm, it features fundamental and third overtone modes, suitable for low-height, high-density, and high-reliability applications like modems and wireless systems. It offers stability, tight tolerance, and excellent frequency stability over temperature with options for different frequency ranges from 10 MHz to 125 MHz. Designed for reflow-soldering in modern electronic devices, it ensures durability and performance in demanding environments.
ABRACON ABM818432MHZB2T Ceramic SMD Crystal Specifications:
- Size: 3.2x2.5x0.8mm
- Frequency Range: 10.000 MHz to 125.000 MHz
- Operation Mode: Fundamental and third overtone modes
- Temperature Range: -10°C to +60°C (with options up to +125°C)
- Frequency Tolerance: ±50 ppm (at +25°C)
- Frequency Stability: ±50 ppm over temperature
- Equivalent Series Resistance: varies with frequency
- Shunt Capacitance: 7.0 pF
- Load Capacitance: 18.0 pF
- Drive Level: 10 to 100 μW
- Aging: 3 ppm per year
- Storage Temperature: -55°C to +125°C
- Insulation Resistance: 500 MΩ at 100V
Buy the Buy Abracon Ultra Miniature Ceramic SMD Crystal Part Number ABM818432MHZB2T Online
Purchase the Abracon ultra miniature ceramic SMD crystal ABM818432MHZB2T today online to experience dependable, high-stability oscillators ideal for compact and high-density electronic applications. This hermetically sealed, RoHS compliant crystal delivers excellent frequency stability, tight tolerance, and reliable performance in demanding environments. Perfect for modems, wireless systems, and communication equipment, it ensures precise operation with durable construction suitable for reflow soldering and various temperature ranges. Buy now to enhance your device’s performance with our trusted oscillator solutions.
Order your Abracon Series ABM818432MHZB2T ultra miniature ceramic SMD crystal today and ensure reliable, high-performance oscillators for your electronic projects.
Frequently Asked Questions
Where can I buy ABRACON ABM818432MHZB2T?
You can click on the BUY or RFQ button to purchase ABM818432MHZB2T from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM818432MHZB2T?
You can download the ABM818432MHZB2T datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM818432MHZB2T?
ABRACON
