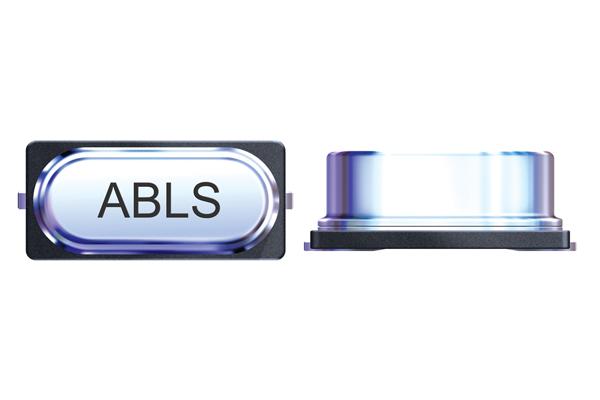

ABRACON ABLS10000MHZB4T Low Profile Crystal
The Abracon ABLS Series HC/49US SMD Low Profile Crystal offers a compact, reliable timing solution suitable for computers, modems, and wireless applications. Operating between 3.579545 MHz to 75 MHz, it features a low profile design with dimensions of 15 x 4.7 x 2.2 mm, RoHS compliance, and stable performance over a broad temperature range. It supports fundamental or overtone modes, with low motional resistance and tight frequency stability for precise applications. Ideal for space-constrained environments requiring stable oscillations and dependable operation.
ABRACON ABLS10000MHZB4T Low Profile Crystal Specifications:
- Dimensions: 15 x 4.7 x 2.2 mm
- Frequency Range: 3.579545 MHz to 75 MHz
- Operation Mode: Fundamental or Overtone (AT cut or BT cut)
- Frequency Tolerance: +50 ppm at +25°C
- Temperature Range: -55°C to +125°C (see options for different ranges)
- Load Capacitance: 15 pF typical
- Drive Level: 1 mW max.
- Aging (first year): +5 ppm max.
- Insulation Resistance: 500 MΩ at 100V
- RoHS Compliant, Suitable for reflow soldering
- Spurious response: -3 dB max.
- Operating Temperature: -55°C to +125°C
Buy the Abracon Series HC/49US Low Profile Crystal: ABLS10000MHZB4T
Enhance your electronics with the Abracon HC/49US Series Low Profile Crystal, a compact and high-precision component suitable for space-constrained designs. Operating in a frequency range of 3.579545 MHz to 75 MHz, it provides stable, accurate oscillations ideal for computers, modems, and wireless devices. RoHS compliant and support reflow soldering, this crystal ensures durability across a wide temperature range. Its robust construction and excellent frequency stability make it the ideal choice for demanding applications requiring precise timing and space efficiency.
Order your Abracon Series HC/49US Low Profile Crystal today and ensure your wireless or computing projects benefit from reliable, space-saving timing solutions.
Frequently Asked Questions
Where can I buy ABRACON ABLS10000MHZB4T?
You can click on the BUY or RFQ button to purchase ABLS10000MHZB4T from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABLS10000MHZB4T?
You can download the ABLS10000MHZB4T datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABLS10000MHZB4T?
ABRACON
