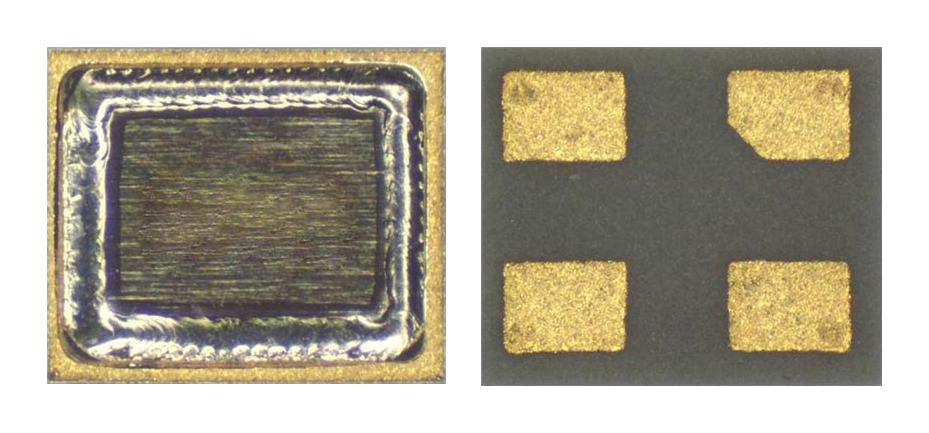

ABRACON ABM13W520000MHZ5NH7UT5 Ultra-Miniature Quartz Crystal
The ABRACON ABM13W series represents a significant advancement in crystal technology, offering an ultra-miniature form factor ideal for modern IoT devices, wearables, and wireless modules. Its compact size (1.20 x 1.00 x 0.33mm) allows for integration into highly constrained designs. The crystal is simultaneously optimized for low plating load and excellent ESR performance across a wide temperature range, ensuring reliable operation and power efficiency in low-energy SoC applications. Available with various frequency tolerances and stability options, the ABM13W series provides a versatile solution for a wide range of applications requiring precise timing and minimal footprint.
ABRACON ABM13W520000MHZ5NH7UT5 Ultra-Miniature Quartz Crystal Specifications:
- Frequency Range: 32.0000 - 80.0000 MHz
- Standard Available Frequencies: 32.0000, 37.4000, 38.4000, 40.0000, 45.0000, 48.0000, 52.0000, 60.0000, 76.8000, 80.0000 MHz
- Operation Mode: Fundamental
- Operating Temperature Range: -40 to +85 °C
- Storage Temperature: -40 to +125 °C
- Frequency Tolerance @ +25°C: -10 to +10 ppm
- Frequency Stability over Operating Temperature: -15 to +15 ppm
- Equivalent Series Resistance (ESR): 100 Ω (32.0000-32.9999MHz), 80 Ω (33.0000-36.9999MHz), 50 Ω (37.0000-80.0000MHz)
- Shunt Capacitance (C0): ≤ 1.0 pF
- Load Capacitance (CL): 5.0 pF
- Drive Level: 10 - 100 μW
- Aging (1 year): -2 to +2 ppm
- Insulation Resistance: ≥ 500 MΩ
- Package Dimensions: 1.20 x 1.00 x 0.33 mm
- Packaging: Tape and reel (5,000pcs/reel)
