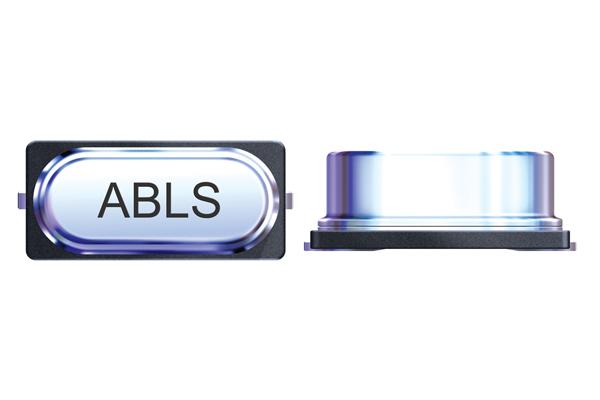

ABRACON ABLS13560MHZ10R20DT Low Profile Crystal
The Abracon ABLS Series HC/49US SMD Low Profile Crystal operates at frequencies from 3.579545 MHz to 75 MHz, suitable for microprocessors, wireless applications, and computers. It features a compact 15 x 4.7 x 2 mm size, RoHS compliance, hermetically sealed design, and stability across wide temperature ranges. The device offers low aging rates, high insulation resistance, and minimal spurious responses, making it ideal for high-reliability electronic circuits requiring stable oscillation with precise frequency tolerance and minimal drift.
ABRACON ABLS13560MHZ10R20DT Low Profile Crystal Specifications:
- Frequency range: 3.579545 MHz to 75 MHz
- Operation mode: AT cut or BT cut, fundamental or overtone
- Size: 15 x 4.7 x 2 mm
- Material: RoHS compliant metal case
- Temperature range: 0°C to +70°C (standard), -55°C to +125°C (extended)
- Frequency stability: ±50 ppm at +25°C
- Shunt Capacitance: 18 pF (max)
- Load Capacitance: 8-30 pF (adjustable)
- Drive level: 0.1 mW (typ), 1 mW max.
- Aging: +5 ppm/year at +25°C
- Insulation Resistance: ≥500 MΩ at 100VDC
- Spurious response: -3 dB max
- Conforms to RoHS, compatible with reflow soldering
- Reflow profile: 60-120 seconds at +260°C ±5°C
Buy the Abracon Series ABLS 3.579545 MHz Crystal: ABLS13560MHZ10R20DT
Purchase the Abracon Series ABLS Low Profile Crystal online today and ensure your electronic designs operate with precise, stable frequencies. Its compact size, RoHS compliance, and hermetically sealed construction make it ideal for demanding applications like computers, wireless devices, and microprocessors. With wide temperature operation, minimal drift, and low aging, this crystal guarantees long-term performance and reliability. Shop now to get this high-quality, easy-to-assemble crystal delivered directly to your workspace and improve your project's stability and accuracy effortlessly.
Order your Abracon Series ABLS 3.579545 MHz crystal today and enhance your electronic projects with reliable, high-stability oscillators.
Frequently Asked Questions
Where can I buy ABRACON ABLS13560MHZ10R20DT?
You can click on the BUY or RFQ button to purchase ABLS13560MHZ10R20DT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABLS13560MHZ10R20DT?
You can download the ABLS13560MHZ10R20DT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABLS13560MHZ10R20DT?
ABRACON
