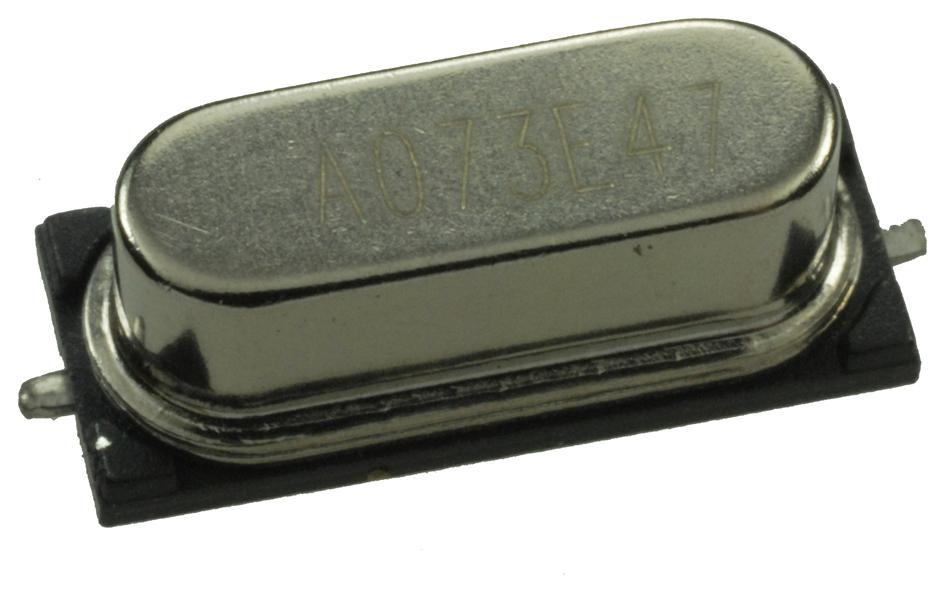

ABRACON ABLS16000MHZ20B4YT Clock Crystal
This component is used in clock and timing applications, providing precise frequency control for electronic circuits. It features a frequency range from 3.579545 MHz to 75 MHz with high stability, low aging, and a compact SMD low profile design. Suitable for wireless, computer, and microprocessor applications, it complies with RoHS standards and withstands extended temperature ranges. Its hermetically sealed build ensures reliability in demanding environments, making it ideal for applications requiring accurate timing and low phase noise. Easy to integrate with standard reflow soldering processes.
ABRACON ABLS16000MHZ20B4YT Clock Crystal Specifications:
- Frequency Range: 3.579545 MHz to 75 MHz
- Operation Modes: AT cut (Fundamental or 3rd OT), BT cut
- Frequency Stability: ±50 ppm at +25°C
- Temperature Range: -55°C to +125°C
- Storage Temperature: -55°C to +125°C
- Frequency Tolerance at +25°C: ±50 ppm
- Equivalent Series Resistance: see Table 1
- Shunt Capacitance: 18 pF max
- Load Capacitance: 1 pF to 15 pF (see options)
- Drive Level: 0.1 mW to 1 mW
- Aging at 25°C (first year): ±5 ppm
- Insulation Resistance: 500 MΩ at 100 V
- Moisture Sensitivity Level: Not applicable, hermetically sealed, RoHS compliant
- Dimensions: 15 x 4.7 x 2.1 mm (approximate)
Buy the Abracon ABLS – Reliable Clock Crystal for Industrial Applications
Secure your electronic timing solutions with the Abracon ABLS series clock crystal. Designed for precise frequency control, it ensures high stability and low phase noise in wireless, computing, and microprocessor systems. Compliant with RoHS standards, this hermetically sealed SMD component offers reliable performance across extended temperature ranges, making it ideal for industrial applications. Easy to solder via standard reflow techniques, providing durability and peace of mind for long-term operation. Purchase online today for consistent, accurate timing performance.
Buy Abracon ABLS series clock crystal now and experience unmatched frequency stability and reliable performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy ABRACON ABLS16000MHZ20B4YT?
You can click on the BUY or RFQ button to purchase ABLS16000MHZ20B4YT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABLS16000MHZ20B4YT?
You can download the ABLS16000MHZ20B4YT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABLS16000MHZ20B4YT?
ABRACON
