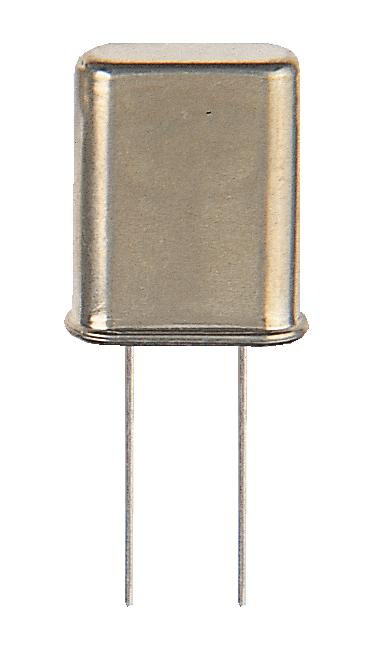

ABRACON AB20000MHZB2 Crystal Oscillator
The HC49/U crystal is a high-precision, RoHS compliant component designed for a wide frequency range from 1.8432MHz to 160.00MHz, suitable for CPU, memory, data communication, and computer applications. It features resistance welded construction with stable frequency tolerance and low equivalent series resistance, making it ideal for high reliability and accuracy in electronic circuits. The compact dimensions of 11.5x5.0x13.46mm, combined with robust build options including metal jacket and vinyl sleeves, ensure durability and consistent performance across operating temperatures from 0°C to +70°C. It is suitable for various overtones and precise timing applications.
ABRACON AB20000MHZB2 Crystal Oscillator Specifications:
- Frequency Range: 1.8432MHz to 160.00MHz
- Operation Modes: Fundamental 1.8432-24.00MHz, 3rd Overtone 24.0-66.00MHz, 5th Overtone 66.01-122.00MHz, 7th Overtone 122.01-160.00MHz
- Operating Temperature: 0°C to +70°C
- Storage Temperature: -55°C to +125°C
- Frequency Tolerance: ±50 ppm at +25°C
- Frequency Stability: ±100 ppm over temperature
- Equivalent Series Resistance (ESR): varies by frequency (up to 120 ohms)
- Shunt Capacitance (C0): 7 pF
- Load Capacitance (CL): 18 pF
- Drive Level: 100 to 1000 micro watts
- Insulation Resistance: 500 MΩ @ 100Vdc+15V
- Dimensions: 11.5 x 5.0 x 13.46 mm
- Packaging: Tape and reel for 1,000 pcs per reel
- RoHS/RoHs II compliant, Moisture Sensitivity Level 1
- Insulator Tab: options with vinyl sleeve or metal jacket, trimmed length options available
Buy the Buy Abracon HC49/U Crystal Part Number AB20000MHZB2 Online
Purchase the Abracon HC49/U crystal oscillator online today to ensure precise frequency stability for your communication, computing, and timing applications. With RoHS compliance and high durability, this crystal features a wide frequency range from 1.8432MHz to 160MHz, making it suitable for various overtone modes. Its compact dimensions of 11.5x5.0x13.46mm guarantee ease of integration into your device. Reliable and stable, the HC49/U is essential for high-precision timing and frequency control in industrial, consumer, and communication electronics. Buy now to enhance your project performance with high-quality crystals.
Order your Abracon HC49/U crystal with wide frequency options and high precision today and give your electronic projects the dependable timing performance they deserve.
Frequently Asked Questions
Where can I buy ABRACON AB20000MHZB2?
You can click on the BUY or RFQ button to purchase AB20000MHZB2 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AB20000MHZB2?
You can download the AB20000MHZB2 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AB20000MHZB2?
ABRACON
