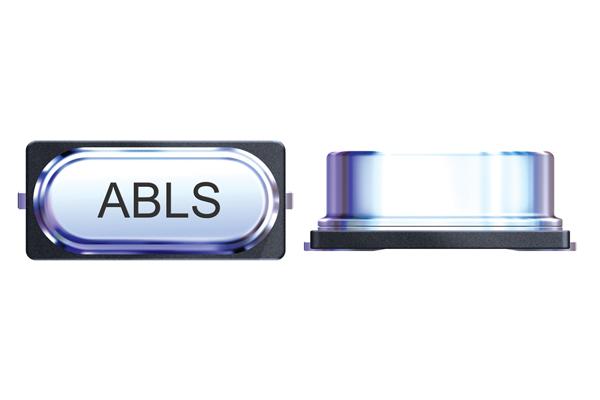

ABRACON ABLS24000MHZD2T Low Profile Crystal
The ABLS Series low profile crystal is a compact, SMD component designed for a broad range of electronic applications, including computers, modems, and wireless devices. Operating at frequencies from 3.579545 MHz to 75 MHz, it offers excellent frequency stability, low drive level, and RoHS compliance. The crystal's hermetically sealed construction ensures moisture resistance and reliable performance over extended temperature ranges. Its small footprint makes it ideal for space-constrained designs, while its wide temperature tolerance and stable oscillation make it suitable for demanding industrial and consumer electronics.
ABRACON ABLS24000MHZD2T Low Profile Crystal Specifications:
- Frequency range: 3.579545 MHz to 75 MHz
- Operation modes: AT cut (fundamental or 3rd overtone), BT cut
- Frequency stability: ±50 ppm at +25°C (see options for tighter specs)
- Temperature range: -55°C to +125°C depending on option
- Frequency tolerance: ±50 ppm at +25°C (options available for tighter tolerance)
- Equivalent Series Resistance: as per standard ESR table
- Shunt Capacitance: 18 pF maximum
- Drive Level: 1 mW maximum, typical 100 µW
- Aging: ±5 ppm per year at 25°C
- Insulation Resistance: ≥ 500 MΩ at 100 VDC
- Certifications: RoHS compliant, suitable for reflow soldering
Buy the Abracon Series ABLS 3.579545 MHz Crystal: ABLS24000MHZD2T
Enhance your electronic projects with the Abracon Series ABLS low profile crystal—compact, reliable, and RoHS compliant. Designed for demanding applications like computers, modems, and wireless devices, it offers stable frequencies from 3.579545 MHz to 75 MHz, excellent temperature tolerance, and low drive levels. Its hermetically sealed construction ensures moisture resistance, making it ideal for industrial and consumer electronics. Purchase online now and secure consistent, high-performance oscillation for your upcoming designs, backed by trusted quality and availability.
Order your Abracon Series ABLS 24000 MHz crystal today and ensure precise oscillation for your challenging electronic designs with high reliability.
Frequently Asked Questions
Where can I buy ABRACON ABLS24000MHZD2T?
You can click on the BUY or RFQ button to purchase ABLS24000MHZD2T from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABLS24000MHZD2T?
You can download the ABLS24000MHZD2T datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABLS24000MHZD2T?
ABRACON
