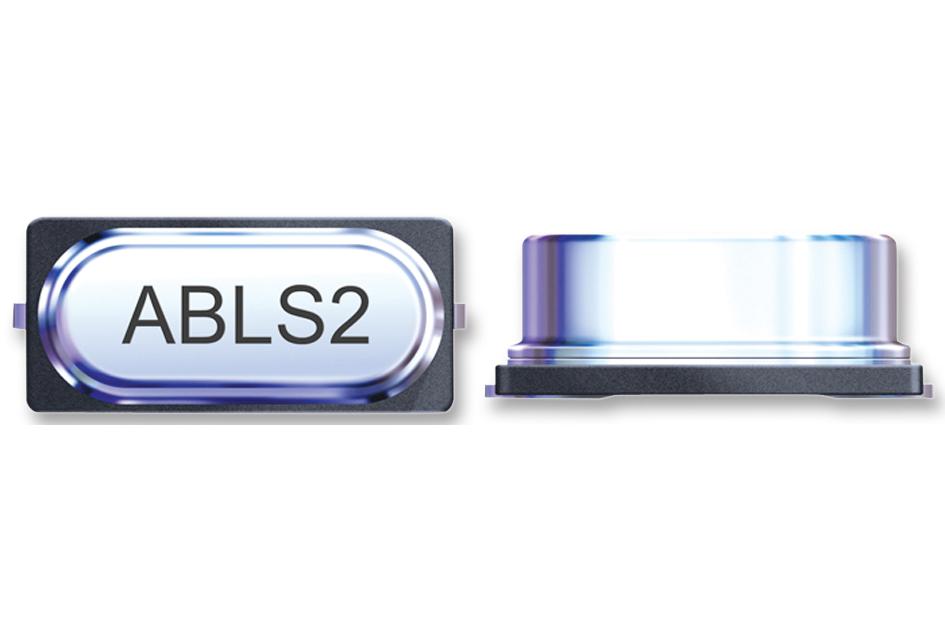

ABRACON ABLS24000MHZD4YT Low Profile Surface Mount Crystal
The ABRACON ABLS2-4.000MHZ-D4Y-T is a low-profile surface mount crystal oscillator designed for a wide range of applications including computers, modems, microprocessors, and wireless devices. It boasts a compact form factor (11.4 x 4.7 x 3.3 mm) and is RoHS compliant. The crystal offers tight stability over an extended temperature range, making it suitable for demanding environments. It's ideal for applications requiring a small footprint and reliable frequency source. Available in tape and reel packaging for automated assembly.
ABRACON ABLS24000MHZD4YT Low Profile Surface Mount Crystal Specifications:
- Frequency Range: 3.579545 - 70.00 MHz
- Operation Mode: Fundamental or 3rd Overtone
- Operating Temperature: 0°C to +70°C
- Storage Temperature: -55°C to +125°C
- Frequency Tolerance: -50 ppm to +50 ppm @ +25°C
- Frequency Stability: -50 ppm over operating temperature
- Equivalent Series Resistance (ESR): See Table 1
- Shunt Capacitance (C0): 7 pF
- Load Capacitance (CL): 18 pF (Standard)
- Drive Level: 100 µW to 1000 µW
- Aging: -5 ppm per year @ 25°C
- Insulation Resistance: 500 MΩ @ 100Vdc
- Drive Level Dependency (DLD): ≤ ±10 ppm frequency change, ≤ 25% ESR change
- Moisture Sensitivity Level (MSL): N/A (Hermetically Sealed)
- Height: 3.3 mm
- Packaging: Bulk or Tape & Reel (1000 pcs/reel)
Buy the ABLS2-4.000MHZ-D4Y-T ABRACON Low Profile Surface Mount Crystal | myMectronic
Purchase the ABRACON ABLS2-4.000MHZ-D4Y-T crystal oscillator securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy ABRACON ABLS24000MHZD4YT?
You can click on the BUY or RFQ button to purchase ABLS24000MHZD4YT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABLS24000MHZD4YT?
You can download the ABLS24000MHZD4YT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABLS24000MHZD4YT?
ABRACON
