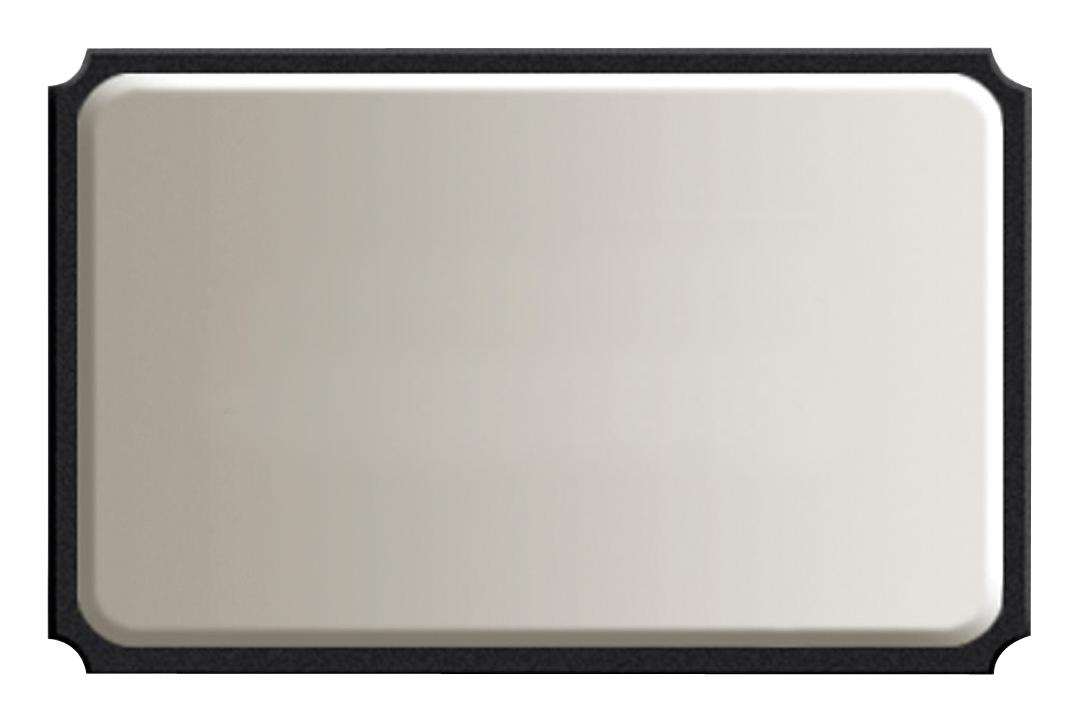

ABRACON ABM1016612000MHZT3 Low Profile Quartz Crystal
This high-precision low profile quartz crystal is optimized for IoT applications, wearables, and wireless modules, offering excellent frequency stability and low power consumption. Its compact 2.5x2.0x0.5 mm size, hermetically sealed and RoHS compliant, ensures reliable long-term operation in size-constrained designs. Suitable for Bluetooth Low Energy, M2M connectivity, and ultra-low power microcontrollers, this crystal provides stable frequency performance with 125 Q ESR, operating from -20°C to +70°C. Its minimal height allows easy integration into space-limited devices, ideal for modern IoT solutions.
ABRACON ABM1016612000MHZT3 Low Profile Quartz Crystal Specifications:
- Frequency: 12.000 MHz
- Operation Mode: Fundamental
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -40°C to +125°C
- Frequency Tolerance: ±10 ppm
- Equivalent Series Resistance: 125 Q
- Shunt Capacitance: 2 pF
- Load Capacitance: 8 pF
- Drive Level: 10 to 100 nW
- Aging: 43 ppm first year
- Insulation Resistance: 500 MΩ @ 100V
- Size: 2.5x2.0x0.5 mm
- RoHS Compliant, MSL = N/A (hermetically sealed)
Buy the Abracon Series IoT Quartz Crystal: ABM10-166-12.000MHz-
Purchase the Abracon Low Profile Quartz Crystal online and integrate this compact, hermetically sealed component into your IoT devices seamlessly. Designed for low power consumption and high stability, it ensures reliable frequency operation in space-constrained wearables, wireless modules, and M2M solutions. Easy to solder with standard reflow profiles, this crystal guarantees long-term durability and consistent performance across a wide temperature range. Ideal for developers seeking a compact, high-quality crystal for their innovative IoT projects and embedded systems.
Buy Abracon ABM10-166-12.000MHz- now and experience unmatched reliability and performance in IoT and wearable applications.
Frequently Asked Questions
Where can I buy ABRACON ABM1016612000MHZT3?
You can click on the BUY or RFQ button to purchase ABM1016612000MHZT3 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM1016612000MHZT3?
You can download the ABM1016612000MHZT3 datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM1016612000MHZT3?
ABRACON
