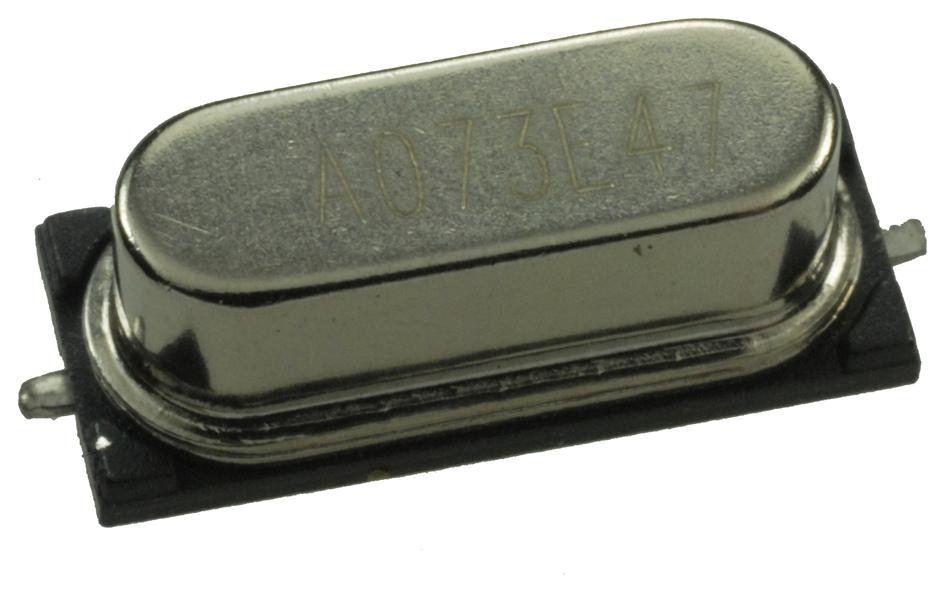

ABRACON ABLS24576MHZ20B3HFT Crystal Oscillator
This crystal component provides precise frequency control for clock and timing applications in electronic circuits. Designed for SMD low-profile installation, it operates across a range of frequencies from 3.579545 MHz to 75 MHz, with stable performance over various temperature ranges. It is RoHS compliant and suitable for commercial, industrial, and automotive use. Featuring hermetically sealed construction, it offers low motional resistance, high stability, and reliable operation in tight spaces, making it ideal for microprocessors, wireless devices, and communication equipment requiring accurate frequency references.
ABRACON ABLS24576MHZ20B3HFT Crystal Oscillator Specifications:
- Frequency Range: 3.579545 MHz to 75 MHz
- Operation Modes: AT cut (Fundamental or 3rd OT), BT cut
- Temperature Range: -55°C to +125°C
- Frequency Tolerance: ±50 ppm at +25°C
- Frequency Stability: ±50 ppm over operating temperature
- Equivalent Series Resistance: Refer to datasheet
- Shunt Capacitance: 18 pF max
- Drive Level: 1 mW max
- Aging (First Year): ±5 ppm
- Insulation Resistance: ≥ 500 MΩ at 100 VDC
- Material: Hermetically sealed crystal
- RoHS Compliant: Yes
- Dimensions: 15 x 4.7 x 2.2 mm
- Reflow Profile: 60–120 seconds at +260°C ±5°C
- Application: Clocks, microprocessors, wireless communications, timing references
Buy the Buy Abracon Crystal Part Number ABLS24576MHZ20B3HFT Online
Enhance your electronic designs with the Abracon crystal oscillator, featuring stable frequency control from 3.579545 MHz to 75 MHz. Its hermetically sealed, RoHS-compliant construction ensures reliable performance in diverse environments, including industrial and automotive applications. Easy to mount on SMD boards, it offers low motional resistance, minimal aging, and excellent temperature stability, making it ideal for microprocessors, wireless modules, and communication devices requiring accurate timing signals. Purchase online today for dependable, high-quality oscillators that meet your project specifications.
Order your Abracon SeriesABLS24576MHZ20B3HFT today and ensure precise, stable timing for your electronic projects with this reliable SMD crystal.
Frequently Asked Questions
Where can I buy ABRACON ABLS24576MHZ20B3HFT?
You can click on the BUY or RFQ button to purchase ABLS24576MHZ20B3HFT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABLS24576MHZ20B3HFT?
You can download the ABLS24576MHZ20B3HFT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABLS24576MHZ20B3HFT?
ABRACON
