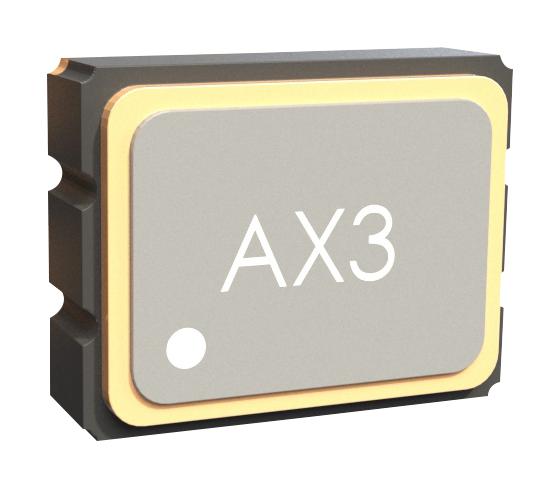

ABRACON AX3PBF11228800 High-Speed Oscillator
The ClearClock ultra-low jitter oscillator offers exceptional performance with RMS jitter below 80fs, available in frequencies from 100MHz to 200MHz. It features industry-standard sizes of 3.2 x 2.5 mm, low power consumption of 16mA at 156.25MHz, and stability of 425ppm over -40°C to +85°C. Options include LVPECL, LVDS, and HCSL outputs, making it ideal for test & measurement, Ethernet, networking, RF systems, and data centers. Its robust design ensures reliable, high-frequency clock signals in demanding applications.
ABRACON AX3PBF11228800 High-Speed Oscillator Specifications:
- Frequency Range: 100-200 MHz
- Jitter: <80fs RMS, typical at 156.25MHz
- Supply Voltage Options: 3.3V, 2.5V, 1.8V
- Power Consumption: 16mA typical at 156.25MHz
- Stability: 425ppm over -40°C to +85°C
- Package Size: 3.2 x 2.5 x 1.0 mm
- Output Types: LVPECL, LVDS, HCSL
- Operating Temperature: -40°C to +85°C
- RoHS/RoHS II Compliant
- MSL: 1
- Reflow Profile: Standard industrial profile
- Application fields: Test & measurement, Ethernet, RF, data centers
Buy the Abracon Series ClearClock Ultra-Low Jitter Oscillator: AX3PBF11228800
Purchase the Abracon high-speed oscillator online today to ensure your electronic systems benefit from ultra-low jitter, high stability, and industry-standard size. Perfect for applications like Ethernet, RF systems, and data centers, this oscillator guarantees precise timing with minimal phase noise. Its low power consumption and multiple output options make it ideal for high-performance designs. Order now and deliver reliable, accurate clock signals in your critical projects, backed by Abracon's quality and technical support.
Buy Abracon AX3PBF11228800 now and experience unmatched reliability and high-performance clock management for your demanding applications.
Frequently Asked Questions
Where can I buy ABRACON AX3PBF11228800?
You can click on the BUY or RFQ button to purchase AX3PBF11228800 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AX3PBF11228800?
You can download the AX3PBF11228800 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AX3PBF11228800?
ABRACON
