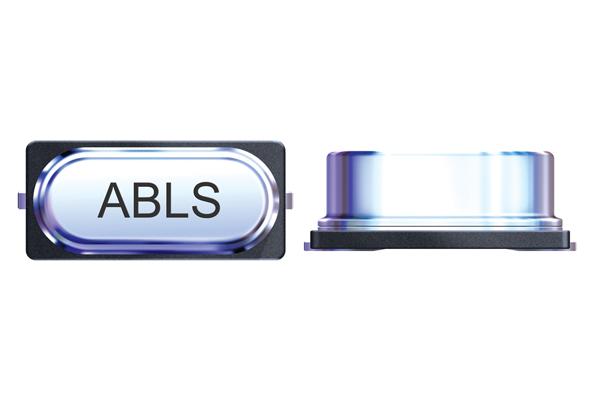

ABRACON ABLS27000MHZB2FT Low Profile Crystal
The Abracon ABLS-27.000MHZ-B2F-T is a hermetically sealed SMD crystal oscillator suitable for a wide range of applications including computers, modems, microprocessors, and wireless devices. It offers frequency stability and operates over a wide temperature range, ensuring reliable performance. This crystal is RoHS compliant and designed for surface mount technology, making it ideal for modern electronic designs. Abracon's crystals are known for their precision and reliability, making them a trusted choice for demanding applications.
ABRACON ABLS27000MHZB2FT Low Profile Crystal Specifications:
- Frequency: 3.579545 MHz to 75 MHz
- Operation Mode: AT cut (Fundamental or 3rd OT)
- Operating Temperature: 0°C to + 70°C
- Storage Temperature: - 55°C to + 125° C
- Frequency Tolerance at +25°C: ± 50ppm max.
- Frequency Stability over Operating Temp: ± 50ppm max.
- Equivalent Series Resistance: See Table 1
- Shunt Capacitance C0: 7pF max
- Load Capacitance CL: 18pF
- Drive Level: 1 mW max., 100 μW typical
- Aging at 25°C (first year): ± 5ppm max
- Insulation Resistance: 500 M min at 100Vdc ± 15V
- Spurious Responses: -3dB max.
- Drive level dependency (DLD): from 1 μW to 500 μW
- ESR Max (3.579 - 4.999 MHz): 180
- ESR Max (5.000 - 5.999 MHz): 120
- ESR Max (6.000 - 7.999 MHz): 100
- ESR Max (8.000 - 8.999 MHz): 80
- ESR Max (9.000 - 9.999 MHz): 60
- ESR Max (10.000 - 15.999 MHz): 50
- ESR Max (16.000 - 50.000 MHz): 40
- ESR Max (24.01-31.999 MHz): 100
- ESR Max (32.000-75.00 MHz): 80
- Dimensions: 11.5 x 4.7 x 4.2 mm
Buy the ABLS-27.000MHZ-B2F-T Abracon Low Profile Crystal | myMectronic
Securely purchase the Abracon ABLS-27.000MHZ-B2F-T crystal oscillator online for your next project.
Buy Now
Frequently Asked Questions
Where can I buy ABRACON ABLS27000MHZB2FT?
You can click on the BUY or RFQ button to purchase ABLS27000MHZB2FT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABLS27000MHZB2FT?
You can download the ABLS27000MHZB2FT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABLS27000MHZB2FT?
ABRACON
