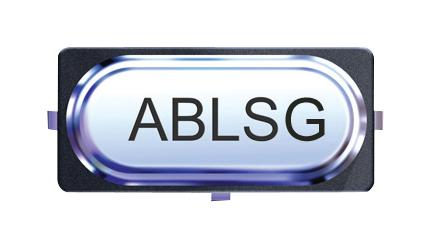

ABRACON ABLSG4000MHZD2YT Grounded SMD Crystal Oscillator
The ABLSG4000MHZD2YT is a hermetically sealed, ground 3rd lead SMD crystal oscillator designed for EMI sensitive applications. Its compact size measures 11.4x4.7x4.2mm, ensuring low profile installation. The oscillator operates between 3.579545 MHz and 75 MHz with excellent temperature stability from 0°C to +70°C. It features low ESR, a maximum drive level of 41 mW, and a low shunt capacitance of 7pF, making it suitable for microwave and high-frequency applications requiring high stability and reliability.
ABRACON ABLSG4000MHZD2YT Grounded SMD Crystal Oscillator Specifications:
- Dimensions: 11.4x4.7x4.2mm
- Frequency Range: 3.579545 MHz - 75 MHz
- Operating Temperature: 0°C to +70°C
- Storage Temperature: -55°C to +125°C
- Frequency Tolerance: +50 ppm max.
- Equivalent Series Resistance: specified in table
- Shunt Capacitance: 7pF max.
- Drive Level: 41 mW max.
- Insulation Resistance: 500 MΩ min at 100 Vdc
- Reflow Profile: Max 1 time at +260°C for 10 seconds
- Material: Hermetically sealed
- RoHS Compliant
- Pin Configuration: Grounded 3rd lead
- Reflow temperature: 250°C for 30-40s
Buy the Abracon Series ABLSG Grounded SMD Crystal Oscillator: ABLSG4000MHZD2YT
Purchase the Abracon ABLSG4000MHZD2YT online today to ensure high performance in EMI sensitive and microwave applications. This hermetically sealed grounded SMD crystal oscillator offers excellent frequency stability, low ESR, and compact size, ideal for demanding electronic systems. Its capability to operate from 3.5795 MHz to 75 MHz with precision and low drive level makes it suitable for various high-frequency, medical, and wireless applications. Order now for reliable, high-quality oscillators delivered directly to your project or production line.
Buy Abracon ABLSG4000MHZD2YT now and experience unmatched reliability and high-frequency stability for EMI sensitive applications.
Frequently Asked Questions
Where can I buy ABRACON ABLSG4000MHZD2YT?
You can click on the BUY or RFQ button to purchase ABLSG4000MHZD2YT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABLSG4000MHZD2YT?
You can download the ABLSG4000MHZD2YT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABLSG4000MHZD2YT?
ABRACON
