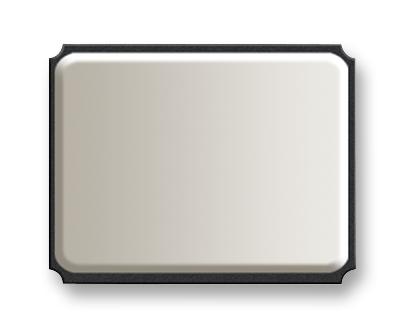

ABRACON ABM11W320000MHZ4D1XT3 Low Profile Quartz Crystal
The ABRACON ABM11W series is a family of low-profile quartz crystals optimized for energy-saving wearables and Internet of Things (IoT) applications. These crystals are designed with a compact 2.0 x 1.6 x 0.5mm form factor and feature plated capacitance as low as 4pF with optimized ESR. The seam-sealed design ensures long-term reliability, making them suitable for a wide range of applications including Bluetooth/BLE modules, M2M connectivity, and ultra-low power microcontrollers. They offer frequency stability and are RoHS compliant.
ABRACON ABM11W320000MHZ4D1XT3 Low Profile Quartz Crystal Specifications:
- Frequency Range: 16.0000 - 50.0000 MHz
- Operation Mode: Fundamental
- Operating Temperature Range: -40 to +125 ºC
- Storage Temperature: -55 to +125 ºC
- Frequency Tolerance @ +25°C: -10 to +10 ppm
- Frequency Stability over Operating Temperature: -10 to +10 ppm
- Equivalent Series Resistance (R1): Up to 200 Ω (depending on frequency)
- Shunt Capacitance (C0): < 1.0 pF
- Load Capacitance (CL): 4.0 pF
- Drive Level: 10 - 100 µW
- Aging (1 year): -2 to +2 ppm @25°C±3°C
- Insulation Resistance: 500 MΩ @100Vdc ± 15V
- Height: 0.5 mm
- RoHS Compliant: Yes
Buy the ABM11W-32.0000MHZ-4-D1X-T3 ABRACON Low Profile Quartz Crystal | myMectronic
Purchase the ABRACON ABM11W-32.0000MHZ-4-D1X-T3 Quartz Crystal securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy ABRACON ABM11W320000MHZ4D1XT3?
You can click on the BUY or RFQ button to purchase ABM11W320000MHZ4D1XT3 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM11W320000MHZ4D1XT3?
You can download the ABM11W320000MHZ4D1XT3 datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM11W320000MHZ4D1XT3?
ABRACON
