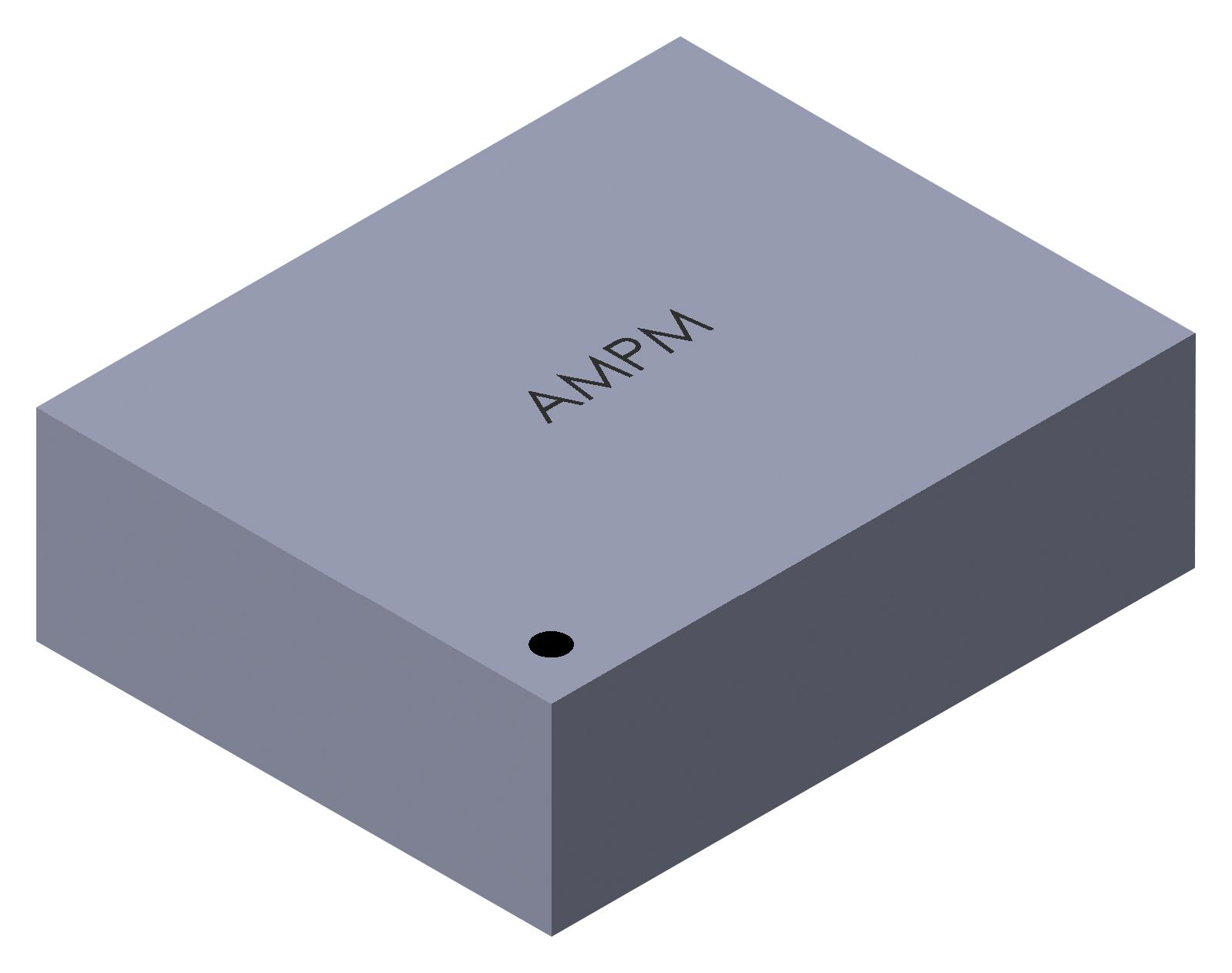

ABRACON AMPMDFB270000T MEMS Oscillator
The AMPM Series MEMS oscillators deliver high stability in extremely compact packages suitable for wearables, IoT, industrial applications, and audio/video devices. With low power consumption, they operate over a wide temperature range of -40°C to +85°C, supporting output frequencies from 1MHz to 80MHz. Available in various package sizes such as 1.6x1.2mm, 2.0x1.6mm, 2.5x2.0mm, and 3.2x2.5mm, these RoHS-compliant devices feature low jitter, fast start-up, and enable/standby functions for energy-efficient operation in compact spaces.
ABRACON AMPMDFB270000T MEMS Oscillator Specifications:
- Package Sizes: 1.6x1.2mm, 2.0x1.6mm, 2.5x2.0mm, 3.2x2.5mm
- RoHS/RoHS II Compliant
- Operating Temperature: -40°C to +85°C
- Frequency Range: 1MHz to 80MHz
- Supply Voltage: 1.71V to 3.63V
- Current Consumption: 1.3mA (typ) at 24MHz, VDD=1.8V
- Start-up Time: 1.3 ms
- Output Enable/Disable: 1 ns (typ)
- Jitter: RMS 23-30 ps
- Cycle-to-Cycle Jitter: 115-190 ps
- Package Features: Low profile, RoHS, MSL=MSL1, ESD sensitive
- Applications include wearables, IoT, industrial, audio/video
Buy the Abraxon Series MEMS Oscillators: AMPMDFB270000T
Purchase the Abraxon MEMS Oscillator AMPMDFB270000T online today. Designed for compact, energy-efficient applications like wearables, IoT, and industrial devices. Featuring wide frequency range from 1MHz to 80MHz, low jitter, fast start-up, and RoHS compliance, this oscillator ensures reliable performance in small packages. Its low power consumption and wide operating temperature range make it ideal for demanding environments. Order now to benefit from quick shipping, excellent quality, and robust operation suitable for modern electronic systems.
Get Abraxon MEMS Oscillator AMPMDFB270000T today—built for precision, compactness, and long-lasting durability.
Frequently Asked Questions
Where can I buy ABRACON AMPMDFB270000T?
You can click on the BUY or RFQ button to purchase AMPMDFB270000T from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AMPMDFB270000T?
You can download the AMPMDFB270000T datasheet or visit the ABRACON website for support.
Who is the manufacturer of AMPMDFB270000T?
ABRACON
