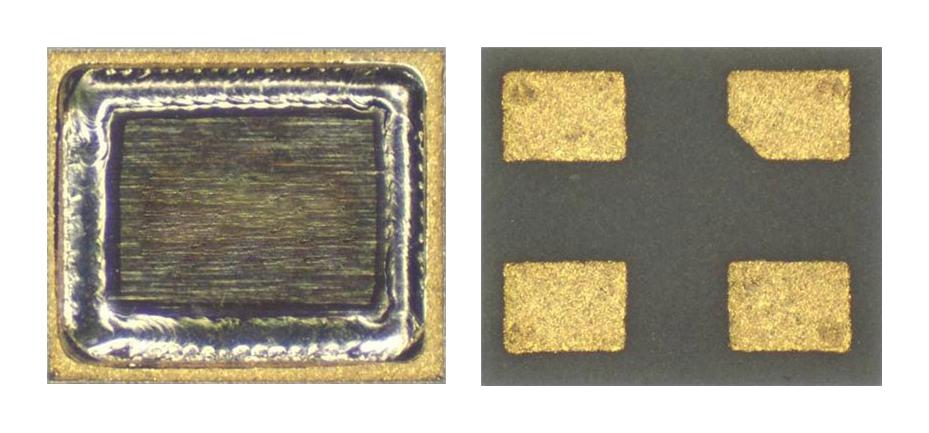

ABRACON ABM13W480000MHZ5DH7GT5 Ultra-Miniature Quartz Crystal
The ABRACON ABM13W series is an ultra-miniature quartz crystal specifically engineered for demanding applications like IoT devices, wearables, and wireless modules. Its compact size (1.20 x 1.00 x 0.33mm) makes it ideal for space-constrained designs. The crystal is optimized for low plating load and excellent ESR performance across a wide temperature range, ensuring stable operation and power efficiency. It's suitable for Bluetooth, BLE, M2M connectivity, and ultra-low power microcontrollers, offering enhanced start-up time and power savings. Available with various frequency tolerances and stability options to meet diverse application requirements.
ABRACON ABM13W480000MHZ5DH7GT5 Ultra-Miniature Quartz Crystal Specifications:
- Frequency Range: 32.0000 - 80.0000 MHz
- Standard Available Frequencies: 32.0000, 37.4000, 38.4000, 40.0000, 45.0000, 48.0000, 52.0000, 60.0000, 76.8000, 80.0000 MHz
- Operation Mode: Fundamental
- Operating Temperature Range: -40 to +85 °C
- Storage Temperature: -40 to +125 °C
- Frequency Tolerance @ +25°C: -10 to +10 ppm
- Frequency Stability over Operating Temperature: -15 to +15 ppm
- Equivalent Series Resistance (ESR): ≤ 45 Ω (32.0000-32.9999MHz), ≤ 35 Ω (33.0000-36.9999MHz), ≤ 25 Ω (37.0000-80.0000MHz)
- Shunt Capacitance (C0): ≤ 1.0 pF
- Load Capacitance (CL): 5.0 pF
- Drive Level: 10 - 100 μW
- Aging (1 year): -2 to +2 ppm @25°C± 3°C
- Insulation Resistance: ≥ 500 MΩ @100 Vdc ± 15V
- Package: T5: Tape and reel (5,000pcs/reel)
- Dimensions: 1.20 x 1.00 x 0.33mm
Buy the ABM13W-48.0000MHZ-5-DH7G-T5 ABRACON Ultra-Miniature Quartz Crystal | myMectronic
Securely purchase the ABRACON ABM13W-48.0000MHZ-5-DH7G-T5 online for reliable performance in your critical applications.
Buy Now
Frequently Asked Questions
Where can I buy ABRACON ABM13W480000MHZ5DH7GT5?
You can click on the BUY or RFQ button to purchase ABM13W480000MHZ5DH7GT5 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM13W480000MHZ5DH7GT5?
You can download the ABM13W480000MHZ5DH7GT5 datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM13W480000MHZ5DH7GT5?
ABRACON
