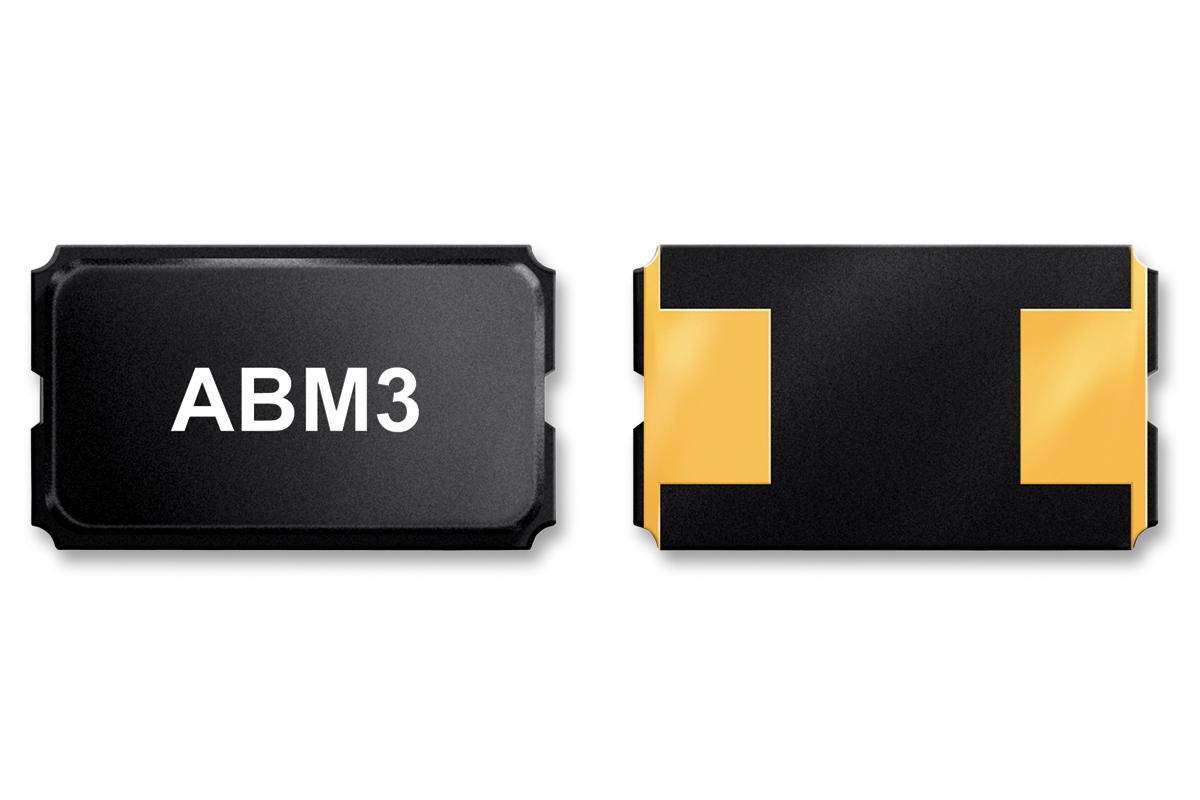

ABRACON ABM327000MHZB2T Miniature Ceramic Crystal
The ABRACON ABM3-27.000MHZ-B2-T is a miniature ceramic SMD crystal oscillator, offering a compact and reliable solution for frequency control in a wide range of applications. Its hermetically sealed ceramic package ensures high precision and stability, making it suitable for demanding environments. This crystal is commonly used in cellular telephones, pagers, communication and test equipment, and PCMCIA and wireless applications. The device is RoHS compliant and designed for surface mount technology, simplifying integration into modern electronic designs. Abracon provides options for frequency stability and operating temperature ranges to meet specific application requirements.
ABRACON ABM327000MHZB2T Miniature Ceramic Crystal Specifications:
- Frequency Range: 8.000 - 54.000 MHz (Fundamental)
- Frequency Stability: -50 to +50 ppm
- Operating Temperature: -10 to +60 °C
- Storage Temperature: -40 to +90 °C
- Equivalent Series Resistance: 30 - 60 Ω
- Shunt Capacitance: 7 pF
- Aging: -5 to +5 ppm
- Insulation Resistance: 500 MΩ
- Moisture Sensitivity Level: N/A
- Package Type: Ceramic SMD
- Dimensions: 5.0 x 3.2 x 1.3 mm
- RoHS Compliant: Yes
Buy the ABM3-27.000MHZ-B2-T ABRACON Miniature Ceramic Crystal | myMectronic
Purchase the ABRACON ABM3-27.000MHZ-B2-T securely and efficiently for your electronics projects.
Buy Now
Frequently Asked Questions
Where can I buy ABRACON ABM327000MHZB2T?
You can click on the BUY or RFQ button to purchase ABM327000MHZB2T from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM327000MHZB2T?
You can download the ABM327000MHZB2T datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM327000MHZB2T?
ABRACON
