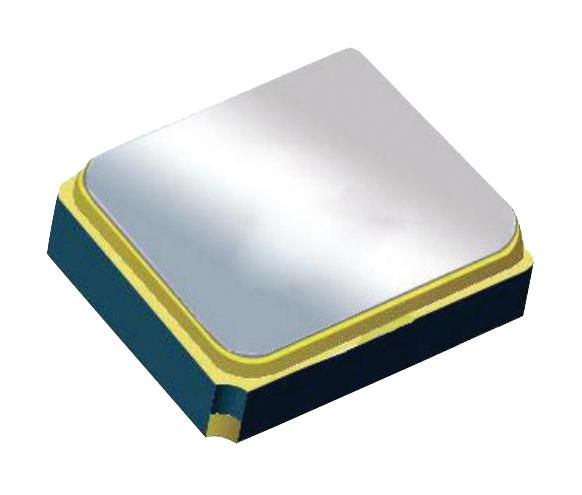

ABRACON AFS14A04157542T3 RF Filter
This surface mount 1575.42MHz SAW filter is designed for wireless communication applications, including cellular phones and remote control systems. It features a compact 14x11x0.7 mm hermetically sealed, low-profile package with high out-of-band rejection and low insertion loss, ensuring excellent selectivity. The filter operates within a temperature range of -40°C to +85°C, with a maximum input power level of +15 dBm. Its impedance matching is optimized for 50Ω systems, making it suitable for high-frequency filtering in various RF applications.
ABRACON AFS14A04157542T3 RF Filter Specifications:
- Center Frequency: 1575.42 MHz
- Frequency Response: 0.90 to 1.50 dB insertion loss (1574.42~1576.42 MHz)
- Effective Bandwidth: 40 MHz
- Maximum Input Power Level: +15 dBm
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +85°C
- Stop-band Attenuation: 38 to 40 dB (1640~1805 MHz)
- Input/Output Return Loss: 23 to 12.7 dB (1574.42~1576.42 MHz)
- Impedance: 50Ω source and load impedance
- Dimensions: 14x11x0.7 mm
- Material: Hermetically sealed package
- RoHS Compliant
Buy the Buy Abracon AFS14A04-1575.42-T3 Online
Order the Abracon AFS14A04-1575.42-T3 RF filter online today and enhance your wireless communication devices with superior selectivity and low insertion loss. This high-quality surface mount filter operates efficiently at the 1575.42 MHz frequency, providing excellent out-of-band rejection for cellular and RF applications. Its compact 14x11x0.7 mm hermetically sealed package ensures durability and reliability in diverse environments. Perfect for developers and engineers seeking dependable filtering solutions for modern wireless systems, this filter guarantees outstanding performance, easy integration, and quick delivery.
Buy Abracon AFS14A04-1575.42-T3 now and experience unmatched reliability and high performance in RF filtering applications.
Frequently Asked Questions
Where can I buy ABRACON AFS14A04157542T3?
You can click on the BUY or RFQ button to purchase AFS14A04157542T3 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AFS14A04157542T3?
You can download the AFS14A04157542T3 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AFS14A04157542T3?
ABRACON
