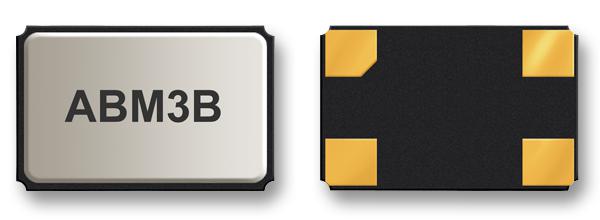

ABRACON ABM3B24000MHZ101UT Ceramic SMD Crystal
The ABRACON ABM3B series crystal oscillators are ceramic SMD components designed for a wide range of applications including cellular telephones, communication equipment, and high-density wireless devices. Featuring a metal lid and ceramic package, these crystals assure high precision and reliability. They operate in fundamental or 3rd overtone modes, with frequency ranges from 8.0MHz to 125.000MHz. The ABM3B-24.000MHZ-10-1-U-T specifically offers a frequency of 24.000MHz and is RoHS compliant, making it a suitable choice for modern electronic designs.
ABRACON ABM3B24000MHZ101UT Ceramic SMD Crystal Specifications:
- Frequency Range: 8.0MHz - 50.0MHz (Fundamental), 50.1MHz - 125MHz (3rd overtone)
- Operation Mode: Fundamental or 3rd overtone
- Operating Temperature: -10°C to +60°C
- Storage Temperature: -40°C to +85°C
- Frequency Tolerance @ 25°C: ±50 ppm max.
- Frequency Stability: ±50 ppm max. over operating temperature
- Equivalent Series Resistance: See table 1
- Shunt Capacitance (C0): 7 pF max.
- Load Capacitance (CL): 18 pF
- Drive Level: 100 µW max., 10 µW typical
- Aging (First Year): ±3°C ± 5ppm max. @ 25°C
- Insulation Resistance: 500 MΩ min at 100Vdc ± 15 V
- Package Type: Ceramic SMD
- Dimensions: 5.0 x 3.2 x 1.1mm
- ESR (max): 200Ω (8.000 - 9.999 MHz), 100Ω (10.000 - 11.999 MHz), 70Ω (12.000 - 15.999 MHz), 50Ω (16.000 - 50.000 MHz), 60Ω (50.001 - 80.000 MHz), 80Ω (80.001 - 125.000 MHz)
